SGT Pipe Reducing Machine is a special equipment for HDPE pipe lining to repair underground pipes. It is by reducing the diameter of the HDPE pipe to be lined into the old pipe, the line is compressed into a u-shaped shape and tied with tape to fix it, then it is pulled into the downpipe by the traction equipment, and then the technology of expanding pipe is used for restoration, finally forming the pipe in the pipe, achieving the purpose of repairing the pipe lining.
Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop. Consists of basic frame, hydraulic unit, planing tool, separate heating plate, support for planing tool & heating plate, and optional parts. Removable PTFE coated heating plate with high accurate temperature control system. Electric planning tool with safety limit switch enables to start it only when it is locked in operation position. Made of lightweight and high strength material. Low starting pressure and high reliable seal structure. Changeable welding position brings more convenience while welding various fittings. Separate two-channel timer records times in soaking and cooling phases. High-accurate and shockproof pressure meter indicates clearer readings. Labor saving and high efficient crane is available to lift planing tool and heating plate .
Electric hoist winch for lifting and pulling. fix speed and variable speed by variable frequency as option.The winch is mainly applied to lifting, pulling and loading or unloading the weight. For example, it can be used to mount and dismount large and medium-sized concrete and steel structure and machinery equipment. Also, it could be utilized as the lifting mechanism of hoisting machinery. This product features orderly-arranged steel wire ropes, safe slinging, smooth transmission and convenient maintenance. This product can be used for the equipment installation in bridge building, port construction, wharf construction, shipyard building and other large-scale factories and mines project.
Automatic pipeline welding workstation are equipment that can be prefabricated outdoors.This not only saves manpower, but also saves transportation time.Meanwhile, the pipeline construction steps can be adjusted according to the site conditions to further save time and manpower.
Pipeline mechanical fitting-up workstation are equipment that can be prefabricated outdoors.This not only saves manpower, but also saves transportation time.Meanwhile, the pipeline construction steps can be adjusted according to the site conditions to further save time and manpower.
Pipeline mechanical fitting-up workstation are equipment that can be prefabricated outdoors.This not only saves manpower, but also saves transportation time.Meanwhile, the pipeline construction steps can be adjusted according to the site conditions to further save time and manpower.
Fast heating,high thermal efficiency,high controllability; Easy maintenance&operation; High quality component; Self-protect function
High quality components,advanced control system,stable operation; Modular design,single switch control,convenient maintenance and use; The equipment is small in size,easy to carry,more suitable for field construction; Fast heating,high thermal efficiency,good controllablitity; Focus on safety design,self protection function is reliable,to ensure the safe operation of equipment,to strengthen the safety of construction personnel protection.
Easy installation&operation; Fast clamping,high precision; Compact size; Wide application.
Compact structure,stable performance,easy operation; High precision,wide application; Limiting device in the supporting system; Quick adjustment,easy maintenance
High hoisting capacity; Simple transmission,reliable performance,low energy consumption,free maintenance; Low vibration,low noise; Operating weight:9625kg/9695kg; Overall dimensions:5415*2370*2955mm
Wheel type tractor chassis,high speed,convenient transportation; Severe operating environment such as swamp,desert,soft soil and so on; Waterproofing treatment for high/low voltage apparatus; Front/back enhanced towing hook; Stable operation,low noise,long operating life,easy maintenance.
Fast&easy installation; High load capacity,excellent abrasion resistance,high impact resistance; Good heat/cold resistance,good chemical stability; High rigidity&tenacity,good mechanical strength,good dielectric property
Easy installation&operation Fast&well-distributed heating wide application
Rational design,light weight,high hoisting capacity,reliable operation. Uniform loading of the pipe weight. High quality track rolling bearing. Freely movement of roller. Change gears made of PU,coating of pipe will not be damaged.
Maxinum hoisting capacity:90t Longer boom Engine:CUMMINS NT855-C360 Operating weight:55t Transport dimension of machine:5630*3436*3540mm
Maxinum hoisting capacity:70t Longer boom Engine:CUMMINS NT855-C360 Operating weight:49t Transport dimension of machine:5630*3400*3540mm
Maxinum hoisting capacity:45t Longer boom Engine:CUMMINS NT855-C280 Operating weight:35t Transport dimension of machine:4855*3384*3270mm
Maxinum hoisting capacity:25t Longer boom Engine:SHANGCHAI SC11CB Operating weight:22t Transport dimension of machine:4150*3050*3250mm
This system suitable for making cushions and pillows filled with a mixture of fiber foam . High productivity, easy to operate. Smooth process from fiber opening, mixing with other materials, to the filling process without jamming.
Automatic Pillow Production Line is a machine designed to automatically fill pillows or cushions. —— The machine equipped the high tech and new weight setting devices, easy to set the weight for each pillow or cushion. —— PLC automatic process and weight control. —— The machine’s filling is sucking instead of the traditional blowing filling. The fresh opened fiber will be sucked to everywhere of pillow/cushion cases. —— Low labor, high efficiency and easy to operate. Only 1 person needed to operate the system.
Can be customized according to your requirements of different sizes of machines
Input the cutting size on the machine, and then the machine cuts and sews the cloth according to the setting.
Bottom rollers were drove by main motor through main speed reducer, output spindle of main speed reducer driven to two down rollers by one group gears, the revolve direction of rollers adjusted by main motor.
Unloading device is designed to remove the workpiece after drums bended into shape. Before unloading the upper rolls move to up limit position, the balance device on upper rolls ends hit upper rolls, draw out the spindle of the pin, then to remove the workpiece.
Bottom rollers were drove by main motor through main speed reducer, output spindle of main speed reducer driven to two down rollers by one group gears, the revolve direction of rollers adjusted by main motor.
This machine composed of two parts those are working part welded in whole chassis and moving part. Working part composed of left and right bearing base, one up roller, two bottom rollers (the material of the three rollers is 45#steel and do heat treatment), lifting screw and turbine and other accessory parts. Down rollers drive up roller to move, up roller can do up and down move by height way. Drive part composed of main motor, main speed reducer and other accessory parts.
A.This machine is symmetrical rolling machine, down up roller and then let up and down roller doopposite roll to bend steel plate. B. This machine composed of two parts those are working part welded in whole chassis and moving part. Working part composed of left and right bearing base, one up roller, two bottom rollers (the material of the three rollers is 45#steel and do heat treatment), lifting screw and turbine and other accessory parts. Down rollers drive up roller to move, up roller can do up and down move by height way. Drive part composed of main motor, main speed reducer and other accessory parts. C. Bottom rollers were drove by main motor through main speed reducer, output spindle of main speed reducer driven to two down rollers by one group gears, the revolve direction of rollers adjusted by main motor. D. Upper roll lifted by accessory motor through vice speed reducer drive worm and worm wheel mechanism of right/left rolls bearing base. That to let the lifting pole do up and down move. E. Unloading device is designed to remove the workpiece after drums bended into shape. Before unloading the upper rolls move to up limit position, the balance device on upper rolls ends hit upper rolls, draw out the spindle of the pin, then to remove the workpiece.
A.This machine is symmetrical rolling machine, down up roller and then let up and down roller doopposite roll to bend steel plate. B. This machine composed of two parts those are working part welded in whole chassis and moving part. Working part composed of left and right bearing base, one up roller, two bottom rollers (the material of the three rollers is 45#steel and do heat treatment), lifting screw and turbine and other accessory parts. Down rollers drive up roller to move, up roller can do up and down move by height way. Drive part composed of main motor, main speed reducer and other accessory parts. C. Bottom rollers were drove by main motor through main speed reducer, output spindle of main speed reducer driven to two down rollers by one group gears, the revolve direction of rollers adjusted by main motor. D. Upper roll lifted by accessory motor through vice speed reducer drive worm and worm wheel mechanism of right/left rolls bearing base. That to let the lifting pole do up and down move. E. Unloading device is designed to remove the workpiece after drums bended into shape. Before unloading the upper rolls move to up limit position, the balance device on upper rolls ends hit upper rolls, draw out the spindle of the pin, then to remove the workpiece.
All positon automatic pipeline welding machine 1.Suitable pipe: more than 130mm 2.Pipe wall thickness: 4-50mm 3.Suitable for : C.S,S.S,A.S, Low temperature steel(S.S is with special rail) 4.Suitable seam welding: pipe to pipe,pipe to elbow, pipe to flange 5.Drive system; stepping motor wheels and Gear/worm transferring 6.Control mode: Button to add and subtract speed 7.Adjustment manner: electrical circuitry control 8.Oscillating system: the company's proprietary technology products, / swing stepper motor 9.Control system: the company's proprietary technology products, the digital control
It is special used for straightening the deformation of welded H-beam, which is divided into Mechanical type and Hydraulic type. Hydraulic type has larger straightening capacity and high degree of automation, suitable for flange thickness more than 40mm. Straightening rollers and main transmission roller adopt quality alloy steel, which are processed with heat treatment for a long life.
Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
This series machine is a kind of advanced and high efficient milling equipment to prepare the groove of plate before welding instead of planing. Compared with planer, it has the advantages of saving power, low investment and high accuracy of surface finish. It is widely used in the industries as pressure vessel, boiler, ship-building, power plant, petrochemical and machinery, etc. There are single milling head and double milling head; and the milling head can be standard facer or molding facer for your options.
We provide structure diagram, electrical schematics (including wiring diagrams), spare parts lists, drawings for vulnerable parts. The complete equipment will be assembled and tested at our factory before delivery. Before packing and delivery to your works ,We hope the equipment will be operated by your specialist technicians who will ensure that the equipment operates in full accordance with its specification in our factory.If you need our assembly and commissioning in your site, these services may be the subject of additional quotes. After sign contracts, we send the drawing of basement of machine to your works in 3 days.
Developed and designed in-house and tested in practice, we have produced a series of cutting machines and cutting lines that will be regarded as industry leading since 2003. All of our CNC cutting machines can be equipped with oxy-fuel and/or plasma cutting equipment. CNC-CG series is our standard cutting machine which not only can cut different profiles/shapes but also can cut strip/straight plate. Guoheng earned its global market position by offering extremely innovative cutting solutions for customers in steel construction, offshore, shipbuilding, process and crane building industry. We also provide user-friendly broad choices and options that allow you to configure your CNC cutting system with the capacities, speed and accuracy of your needs.
1.Heavy duty design, with Four guide rails on the gantry 2.with two sets of Chinese MZ1000 SAW welders and flux recycle unit 3.web and flange aligning and centering at the same time automatically 4.Automatic arc guide system 5.Hydraulic flange straightening 6.In put conveyor :2.6m conveyor*3sections (one of them is powered) 7.Output conveyor: 11.5m (including two elevation conveyors)

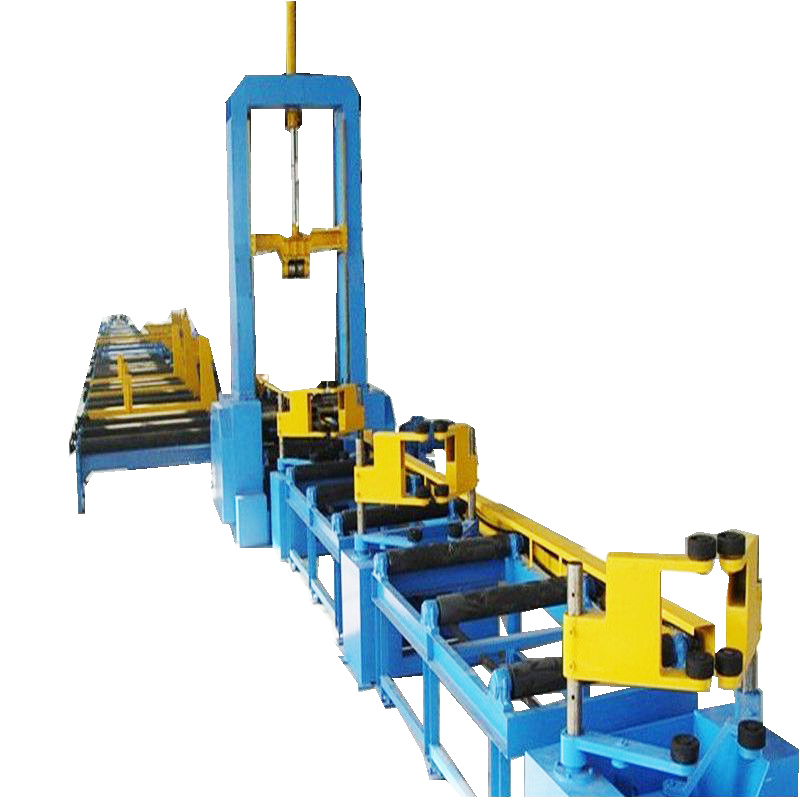

After finished the H-beam assembling process, H-beam automatic SAW welding is required. It has several structural styles: LHA gantry type, LHT double cantilever type and LHC cantilever type. It adopts A.C. variable frequency control to realize back and forth welding. It has stable and reliable working and simple and convenient operation. Special designed arc-guiding rack can satisfy the welding requirements of small H-beam and star/cross beam.
1.Carbon steel , Stainless steel circumferential seam gouge, grinding and polishing. 2.Vessel internal stainless steel cladding welding layer grinding and polishing 3.Vessels internal and external circumferential, longitudinal seam, weld reinforcement part grinding and polishing. Use before vessel fitting-up. 4.V bevel type vessel.
1.Application 2M58ZSM7.5×6 is used for internal/external circumferential and longitudinal seam, cladding seam grinding and gouge of boiler, pressure vessel and related vessels. 2.System configurations and technical data (Please refer to following chart and pictures ) 2.1. System configurations It consists of ZSM7.5×6 cross manipulator, MW-1300 multifunctional abrasive wheel and abrasive belt head, SG*5.0 dust removal system, pneumatic control system and related electronical system.
Welding positioners(turn table)are usually used for welding of shafts,plates and cylinders.There are T-slots for clamping and positioning of vessels.Welding table could do 360^ rotating movement and 120^ tilting movement.Pedestal of machine adapts airframe structure and its overall stability is good,no need to fix it on ground.Hand-control box is offered,being convenient.
Welding manipulator/welding column and boom is a kind of widely-used and high-automated auxiliary equipment in welding industry.Through the rotation of column and retraction&lifting of boom,welding manipulator meets welding requirements of cylinders with different sizes.Welding head is fixed at one end of welding manipulator to carry out automatic welding.This kind of welding manipulator could also be operated together with welding rotator/tank turning roller to carry out round and longitudinal welding of inside and outside seam,which has got extensive application in Boiler,Petrochemical,Shipbuilding and Steel structure industries.

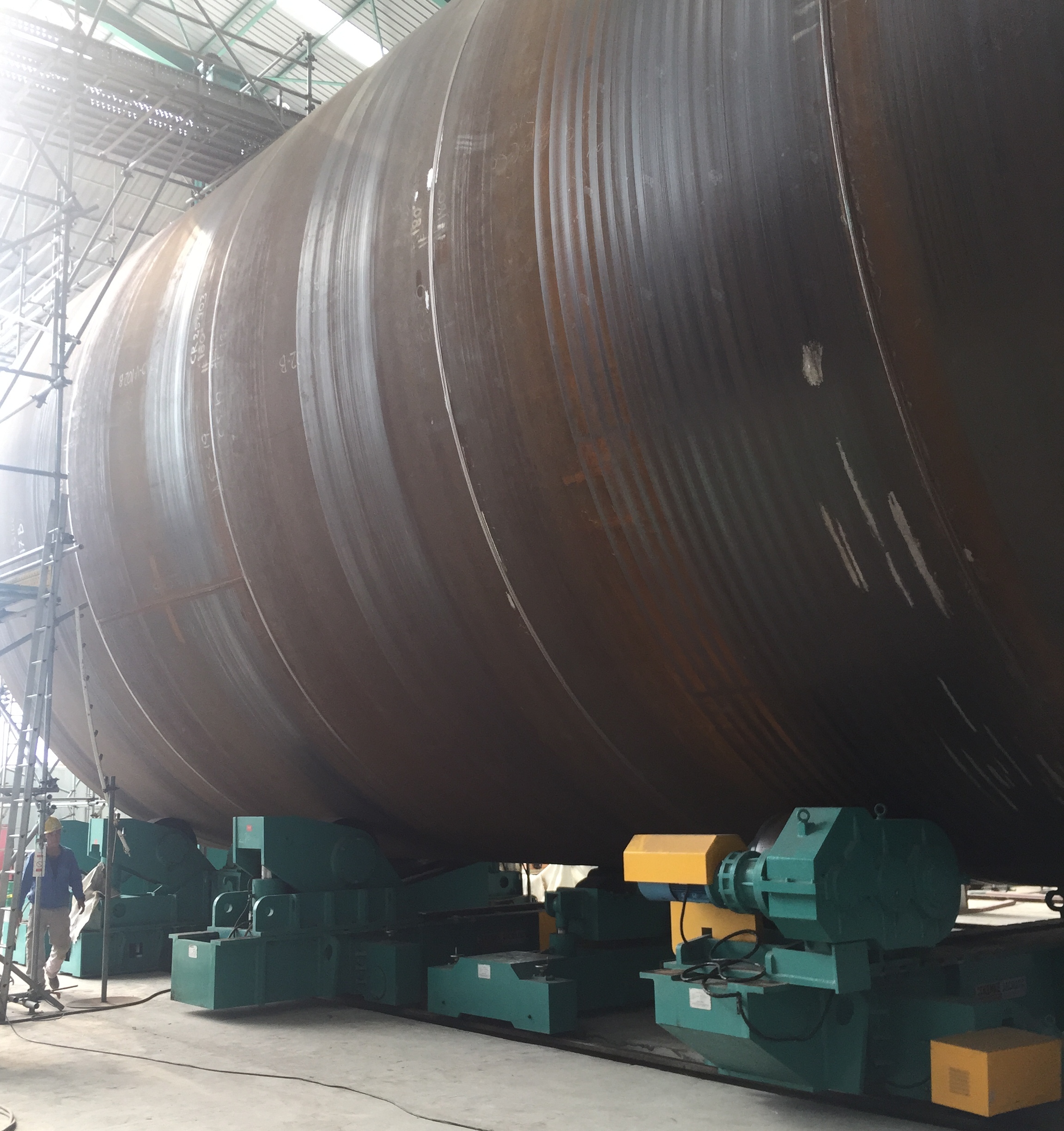

Conventional welding rotator consists of one drive unit and one idler unit to meet welding requirement of hand-welding,automatic welding requirements of hand-welding,automatic welding and automatic submerged arc welding.Roller distance is adjusted by screw arbor or bolt.It is especially suitable for cylinder with much smaller(lighter than 5 tons)or much bigger weight(heavier than 200tons).Rotators could be made of rubber,Steel Or PU,It is all on customer’s requirement.

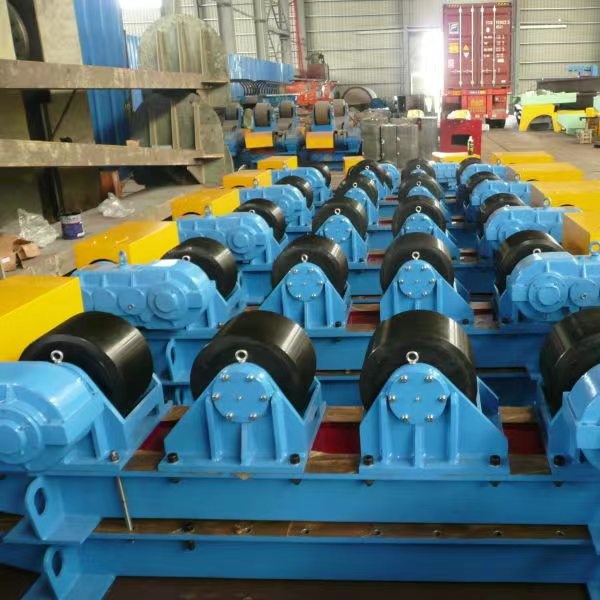

Welding rotator is mainly used to weld,burnish,assemble,assemble the cylinder-vessel,its series include self aligning rotator,conventional rotator,tilting rotators,and drift rotators,traverse type rotators,we can provide solutions to unique welding rotator according to the customer’s requirement.
HGZ type self aligned welding rotator(turning roll)is designed on the base of welding requirements of pressure vessels,and absorbs advantage of similar products both from domestic and international market.The rotation of vessel is carried out by friction of Power unit and vessel.This kind welding rotator attribute a lot in the round and longitudinal welding of metallic cylinder(tank,pipe).HGZ welding rotator adjusts roller distance automatically,no need to do manual adjustment.Rotators are made of rubber,Steel or PU,it is all on customers’ decisions.Advanced technique,sound quality and convenient operation guarantee customer’s satisfaction.
This machine is specially good at welding pipe with slip on flanges which has two welding head for in & out site fillet welding.
Shot-blasting machine is a kind of shot-blasting equipment, which is applied to clean the surface of steel structure welding workpiece, H-style steel, plate and other profiles. It can clean away rusty spot, rusty scale, welding slag on the workpiece surface, as well as welding stress, in order to remove stress and improve surface lacquer quality and rot proofness of steel structure and steel.
pipe cutting band saw machine be widely used in projects with a majority of heavy wall thickness & standard wall thickness pipes.
Cutting off & with one bevel of the pipe at simultaneously for /cutting off & with two bevels of the pipe at simultaneously .
New Fast Pipe Beveling Machine, CNC Pipe End Beveling Machine CNC Pipe groove cutting machine Performance features On-line performance: Good(designed as per the on-line equipment of the production line) Beveling speed: ≤ 5min /pipe bevel (dn200 sch40) Bevel cutting: Cutting a pipe with other equipment such as band saw and then machining each bevel. Bevel quality: Very good Application: For machining the u or v shape bevels for numbers of pipes with heavy wall thickness
Specifications 1) CNC Control 2) Bevel Quality:very good 3) High speed in beveling Product Description Product name: CNC High Speed Pipinvg End Beveling Machine
