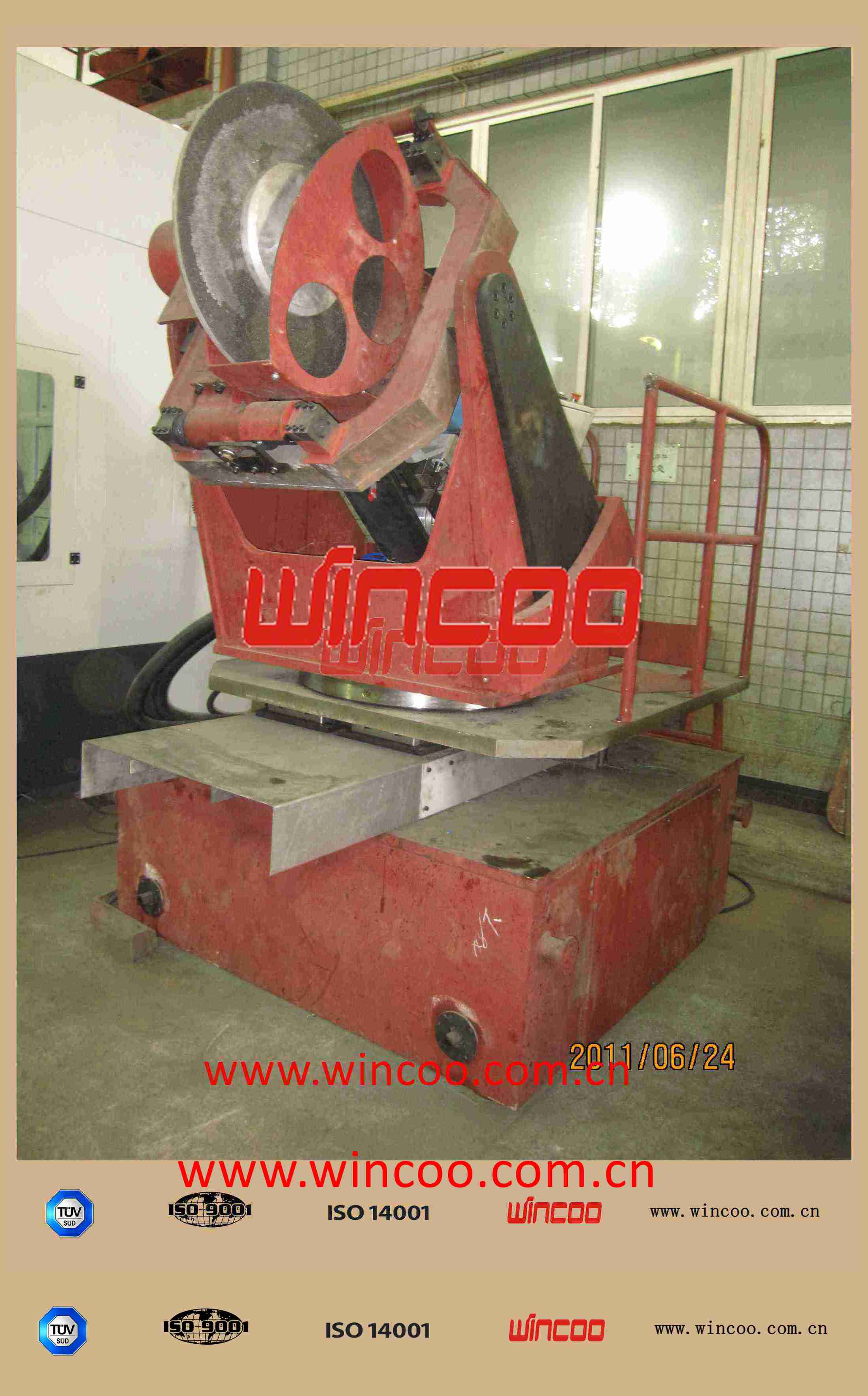

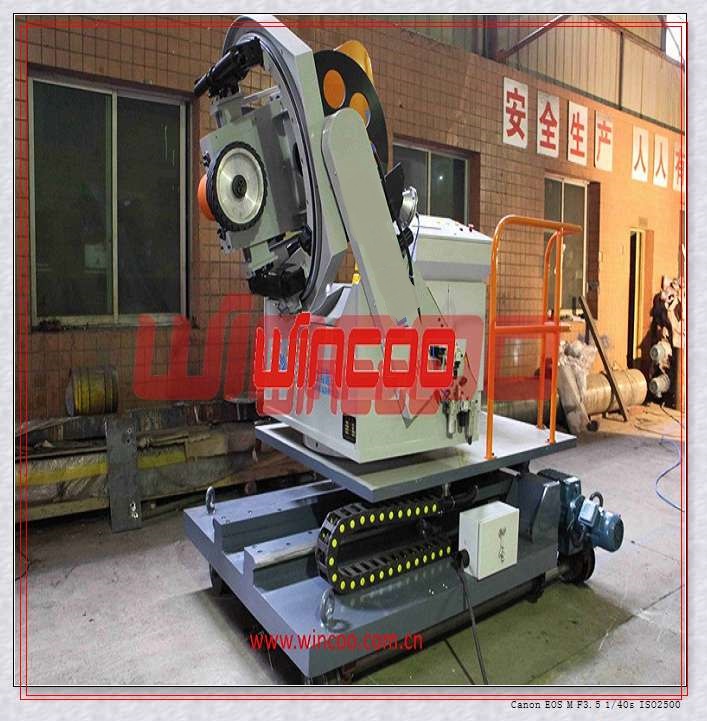

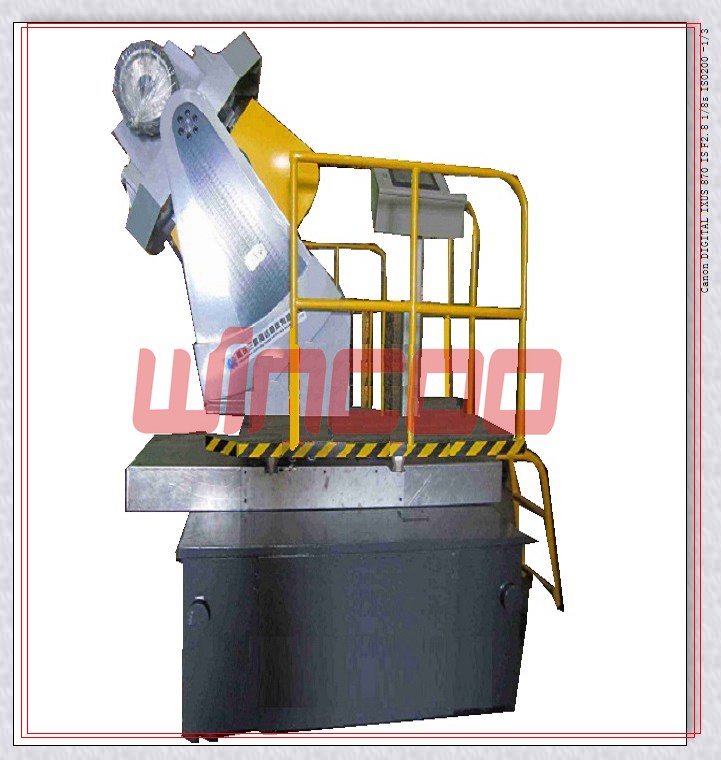

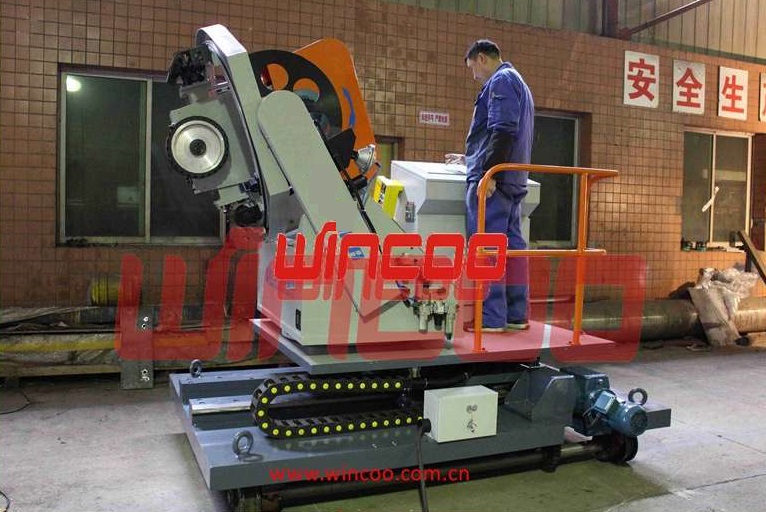

Application
1.Carbon steel , Stainless steel circumferential seam gouge, grinding and polishing.
2.Vessel internal stainless steel cladding welding layer grinding and polishing
3.Vessels internal and external circumferential, longitudinal seam, weld reinforcement part grinding and polishing. Use before vessel fitting-up.
4.V bevel type vessel.
Objective workpiece and technical requirement
1.Workpiece Diameter ranges--------------------------------φ550mm~φ5000mm;
2.Minimum Diameter required while with Dust removal system -------------------------≥φ1400mm
(Internal longitudinal welding reinforcement part grind required minimum Diameter ≥φ2400mm,If less than φ2400mm, needs to notice before manufacturing)
3.Maximum workpiece/vessel thickness --------------------------------δ≤230 mm
4.Single section of vessel maximum length ---------------------------- L≤4500 mm
5.Workpiece materials -------------------------------------SS. CS
6.width of welding seam -------------------------------------≤90 mm;
7.surface roughness -------------------------------Ra12.5.
Machine working environment
1.Power -----------------------------------------Three phase AC 380±10%,50HZ±2%
2.Temperature------------------------------------------10-55ºC
3.Maximum humidity ----------------------------------98%(35ºC)
Main technical Data
1.Minimum height of Grinding & gouge head to ground ---------------------------------------800mm
2.Maximum Height ---------------------------------------------5000 mm
3.Vertical moving maximum speed-------------------------------------100~1200mm /min(frequency control)
4.Horizontal moving distance ---------------------------------------------5000 mm
5.Maximum horizontal moving speed-------------------------------------100~1200mm /min(frequency control)
6.Beam rotating degree allowed---------------------------------------------±90°
7.column rotating available allowed---------------------------------------------±180°
8.The beam deflection ---------------------------------------------2.5mm/m
PLC control system
The grinding and gouge machine utilizes Siemens PLC (S7-300) system. To make it easy to operate the machine, the transmitter cabinet control mainly depends on hand-held operation box control. Transmitter cabinet is located on the back of machine, each function grinding & gouge head and accessories are with separate fast interface. Pneumatic unit: air source 0.4~0.8mpa, it is with oil-water separator. Elements are using SMC brand. Grinding/gouge head coordinate control is driven by continuous manual variable frequency. The consistent pressure relocation mechanism can remove the beam deflection during grinding and gouging, which means the abrasive wheel is always perpendicular to the axis of the vessel. Required Linear velocity of vessel roller is 0.1-3m/minute during grinding or gouging
Main purchased part brand
SN | Name | Brand |
1 | motor | SGHB |
2 | reducer | SGHB |
3 | bearings | NSK, Japan |
4 | Heavy duty linear guide | AMT, Taiwan |
5 | ball screw | AMT,Taiwan |
6 | pneumatic element | SMC,Japan |
7 | slewing bearing | Korea |
8 | self-lubrication system | Nanjing,China |
9 | low-voltage electrical components | AIKS, Hong Kong |
10 | control cabinet | SGHB |
11 | PLC frequency converter | Siemens,Germany |
12 | sensor | AIKS, Hong Kong |
Spare part list
Name | Specification | Purpose | Quantity |
connection wheel | Φ300×100 | Welding seam and Inside and outside surface | 5 |
Abrasive belt | 415um,198um | Welding seam and Inside and outside surface | 20 |
Abrasive wheel | Φ650×12(20) ×Φ80 mm | gouging | 20 |
