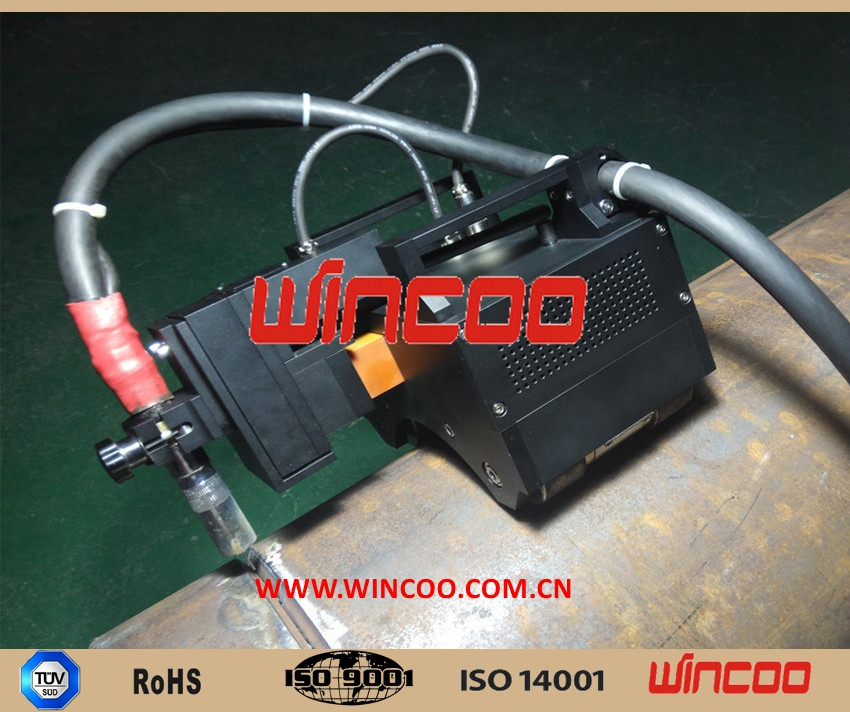

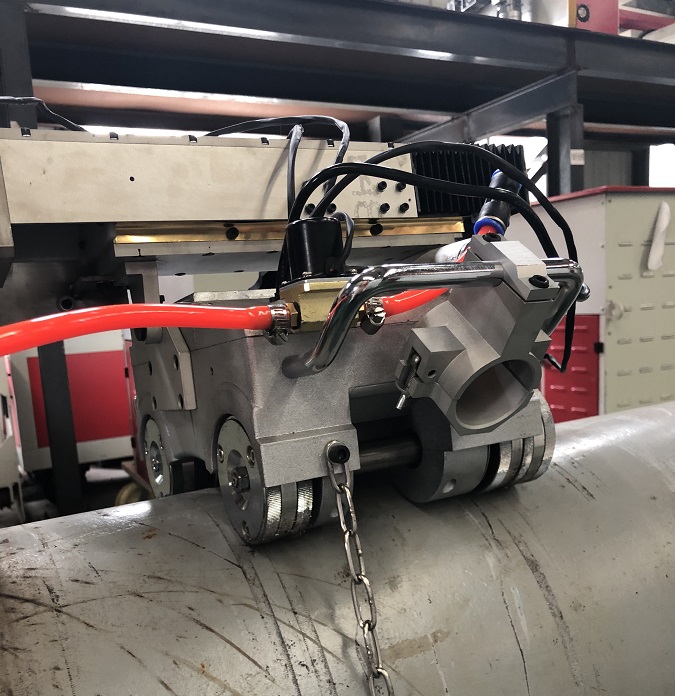

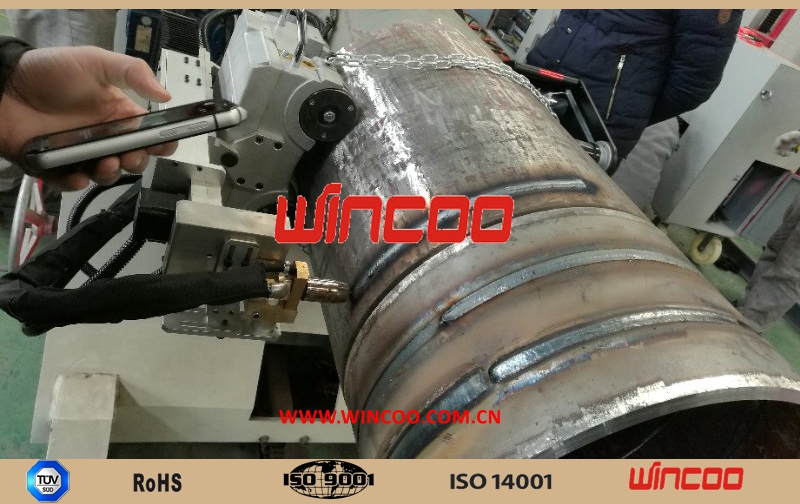

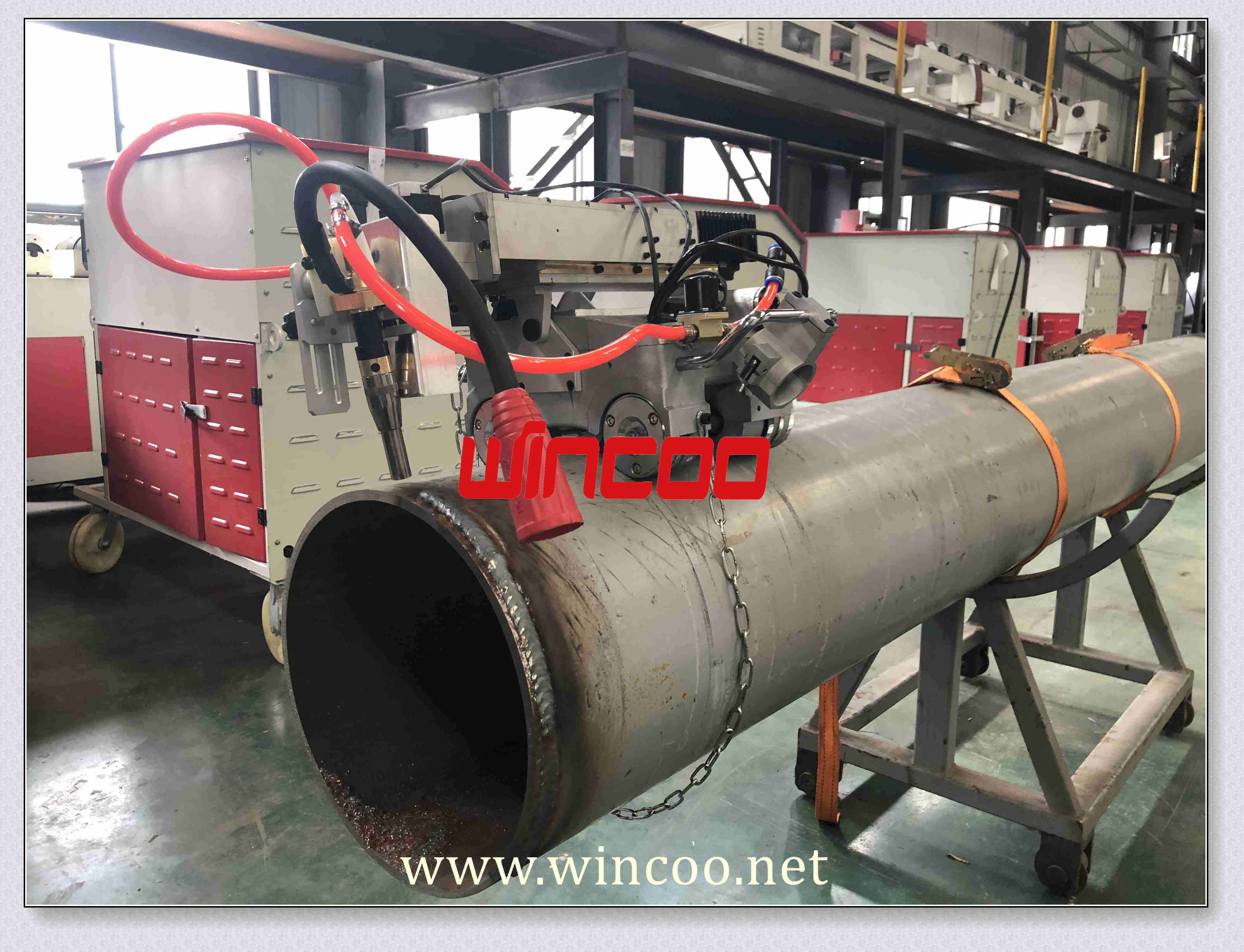

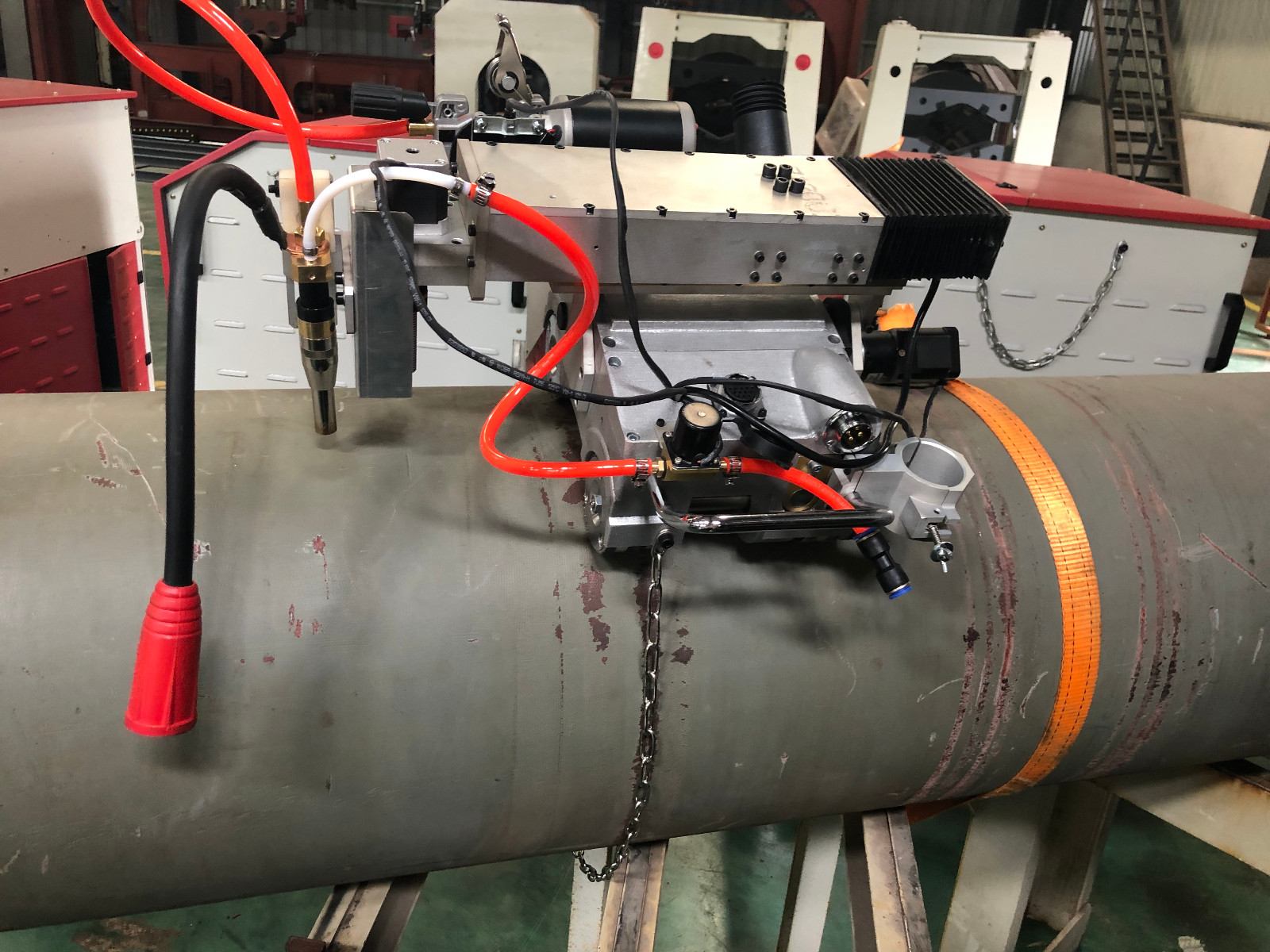

All positon automatic pipeline welding machine
1.Suitable pipe: more than 130mm
2.Pipe wall thickness: 4-50mm
3.Suitable for : C.S,S.S,A.S, Low temperature steel(S.S is with special rail)
4.Suitable seam welding: pipe to pipe,pipe to elbow, pipe to flange
5.Drive system; stepping motor wheels and Gear/worm transferring
6.Control mode: Button to add and subtract speed
7.Adjustment manner: electrical circuitry control
8.Oscillating system: the company's proprietary technology products, / swing stepper motor
9.Control system: the company's proprietary technology products, the digital control
