1. Introduction
Developed and designed in-house and tested in practice, we have produced a series of cutting machines and cutting lines that will be regarded as industry leading since 2003. All of our CNC cutting machines can be equipped with oxy-fuel and/or plasma cutting equipment.

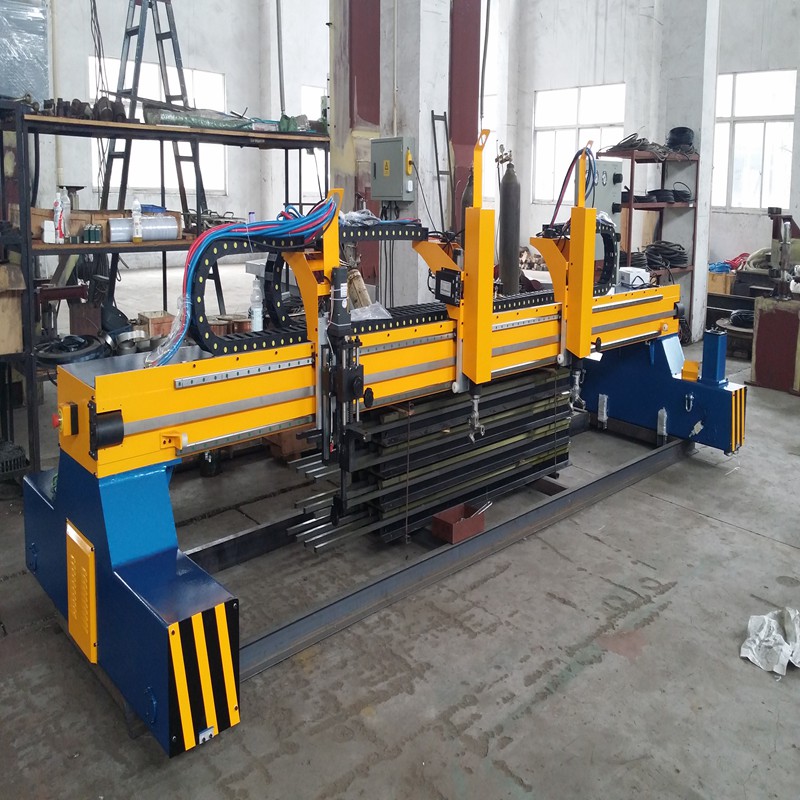

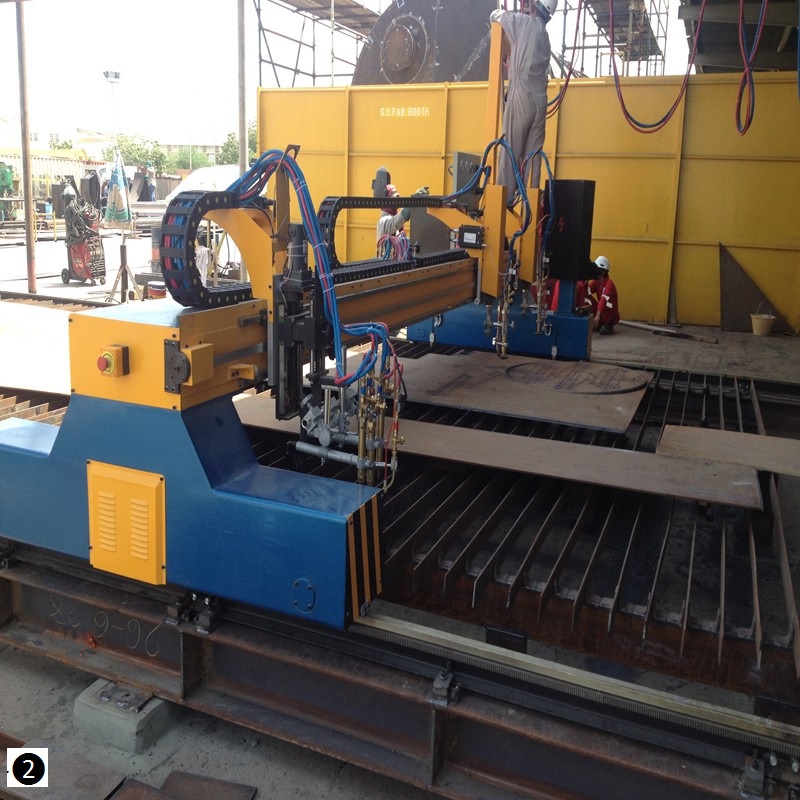

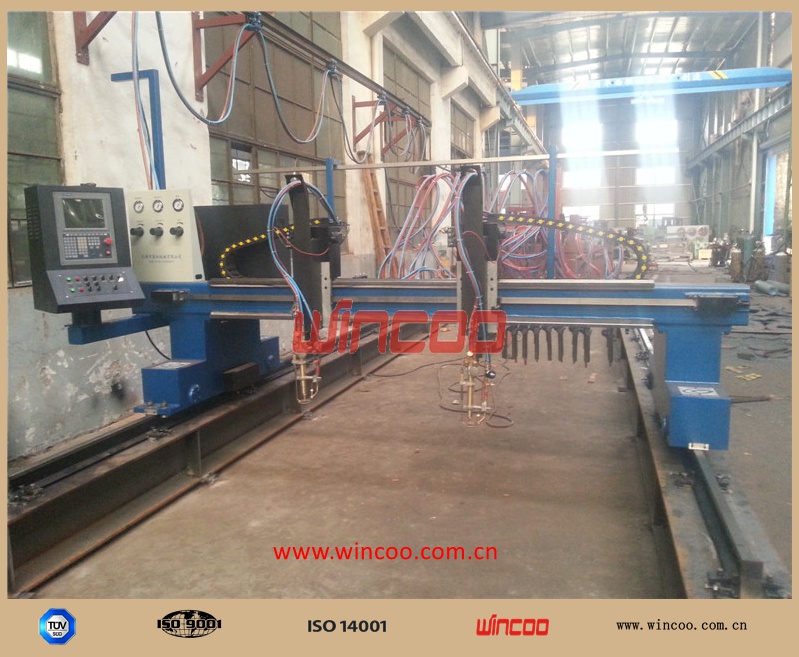

CNC-CG series is our standard cutting machine which not only can cut different profiles/shapes but also can cut strip/straight plate.

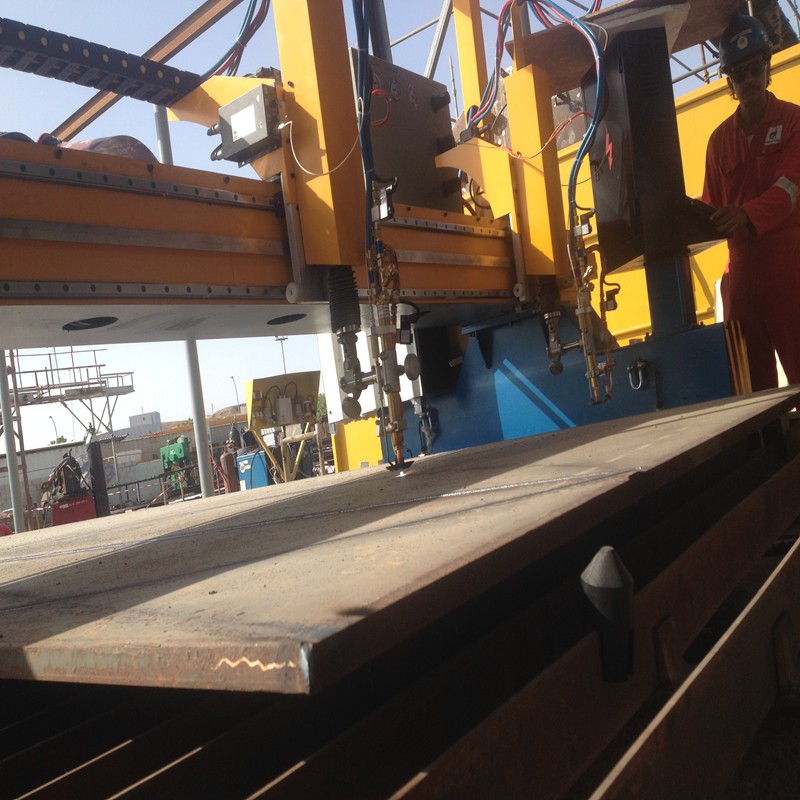

Guoheng earned its global market position by offering extremely innovative cutting solutions for customers in steel construction, offshore, shipbuilding, process and crane building industry.
We also provide user-friendly broad choices and options that allow you to configure your CNC cutting system with the capacities, speed and accuracy of your needs.
2. Main Parameters
Model | CNC-CG3000 | CNC-CG4000 | CNC-CG5000 | CNC-CG6000 | CNC-CG7000 | CNC-CG8000 |
Drive system | Single side gear and rack driving | Double sides gear and rack driving | ||||
Rail span (mm) | 3,000 | 4,000 | 5000 | 6000 | 7000 | 8000 |
Valid working width (mm) | 2,200 | 3,200 | 4200 | 5200 | 6200 | 7200 |
Strip/straight cutting width (mm) | 80-2,200 | 80-3200 | 80-4200 | 80-5200 | 80-6200 | 80-7200 |
CNC flame torch | 2groups | |||||
Strip/straight cutting torch | 9groups | |||||
Rail length (mm) | 15,000 (valid cutting length 12,5000), fine machining I-rail | |||||
Torch lift stroke (mm) | 150 | |||||
Flame cutting speed (mm/min) | 50-1,000 (setting as per cutting technology) | |||||
Fast return speed (mm/min) | 4,000 | |||||
Flame cutting material | MS | |||||
Flame cutting thickness (mm) | 6-150 (single torch), piercing thickness≤100 | |||||
Cutting surface roughness | Ra12.5-25 | |||||
Positioning accuracy (mm/m) | ±0.5 | |||||
Intersection point deviation (mm) | ≤0.5 (800*800 industry standard prescribed figure lineation) | |||||
Diagonal error (mm) | ≤0.5 (square lineation) | |||||
Power supply | AC220V 50HZ single phase | |||||
Above are our standard models and parameters, and it can be designed and manufactured on request. | ||||||
*We reserve the right to alter specifications without prior notice.

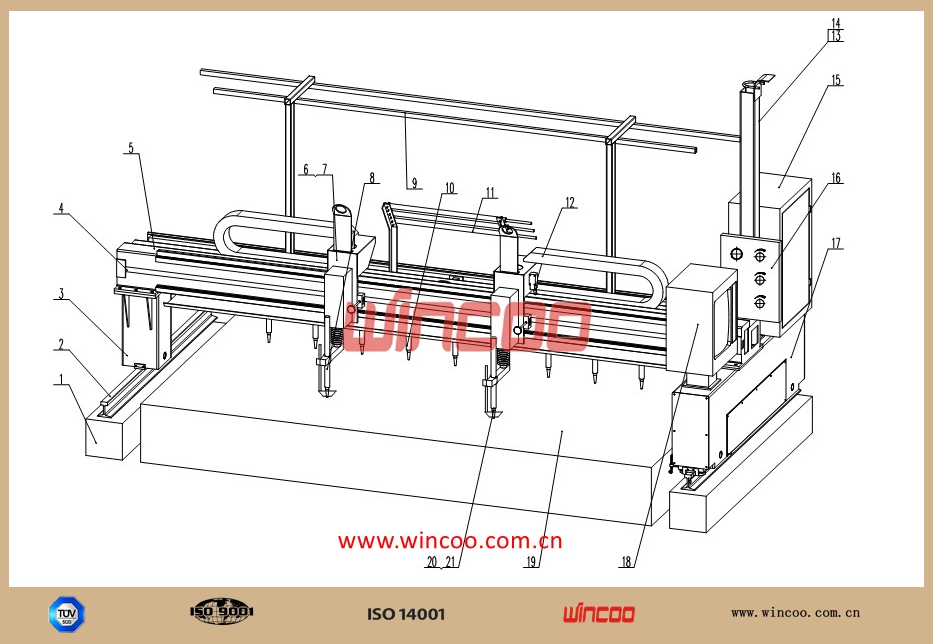

3. Main features
The standard models of our CNC flame/strip oxy-fuel cutting machines have the following features:
1.Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
2.Micro-step SH-2200AH CNC system;
3.Single side gear and rack driving;

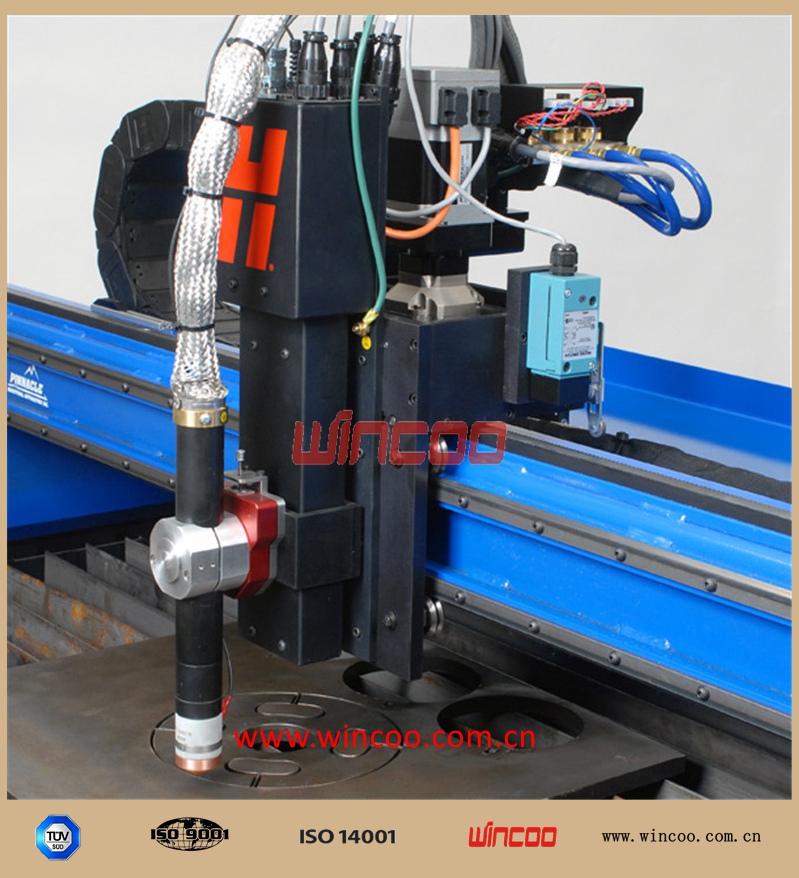

4.Capacitive height controller and auto-igniter;
5.Australia FASTCAM auto programming and nesting software;
6.Both longitudinal and transverse drives adopt Japan Panasonic high precision A.C. servo motor, Germany NEGUART high precision gear reducer and high precision gear and rack.
7.The brushless AC servo motor has high torque, high resolution and high inertia.
8.Longitudinal rail is fine machining rail. Rack material is 45# steel, fixed in rail by bolt in sections.

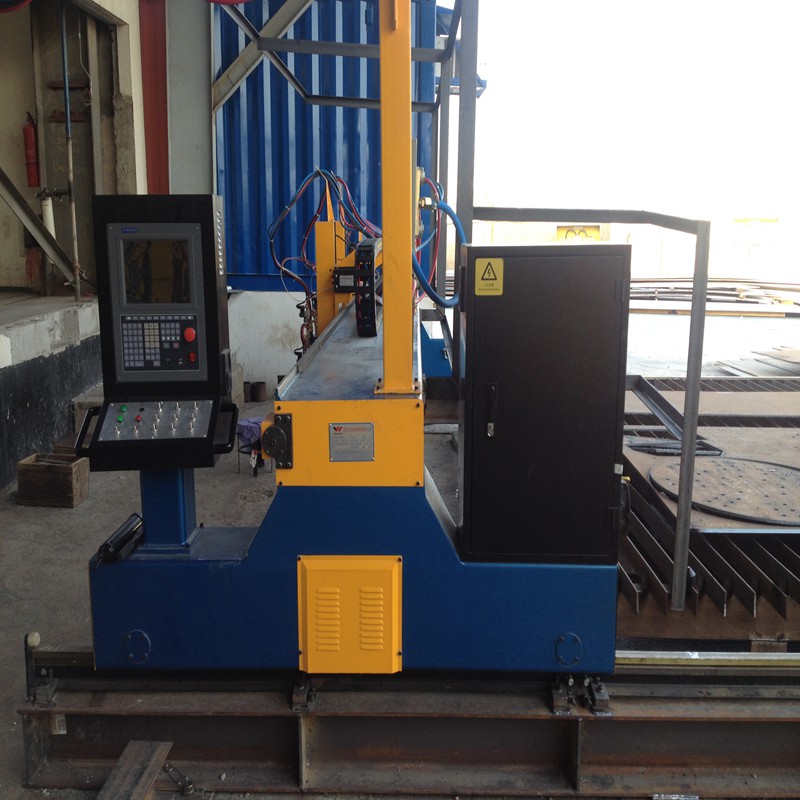

9.Advanced PC-Based CNC controller with faster processing speed & greater accuracy improves productivity. This CNC controller features a Windows operating system and colored LCD screen.
10.Germany IGUS transverse drag chain;
11.Limit switch for gantry travel;
12.Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
13.High intensive heat-resisting gas supply pipe;
14.Backfire arrester and solenoid for cutting oxygen for torch;
15.All motion parts have lubrication system;
16.Main electric elements are ABB/Siemens brands;
17.Hand pendant;
18.Lifting lug.
