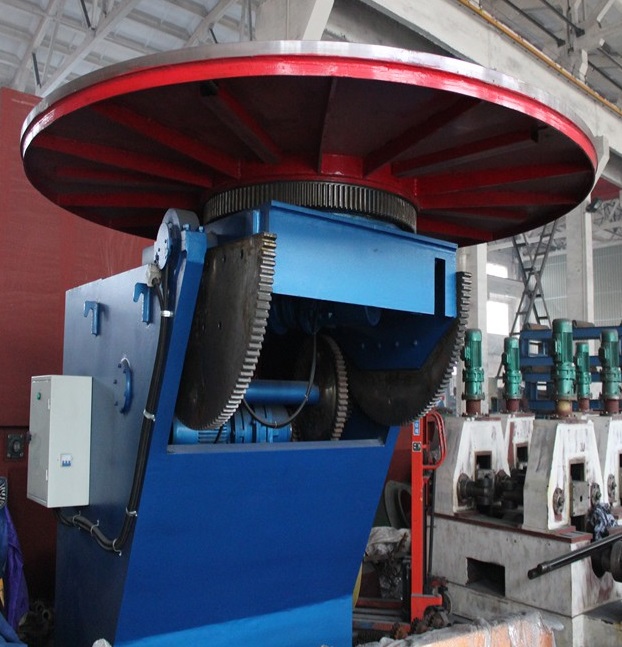

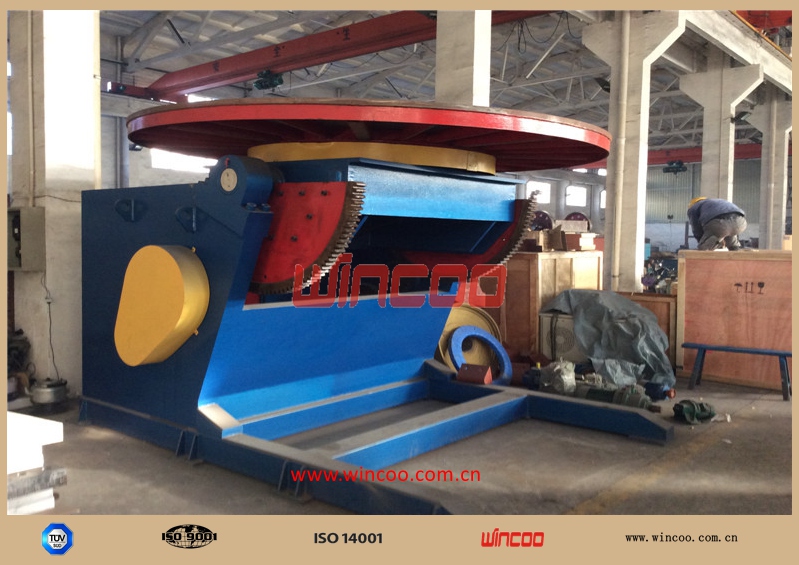

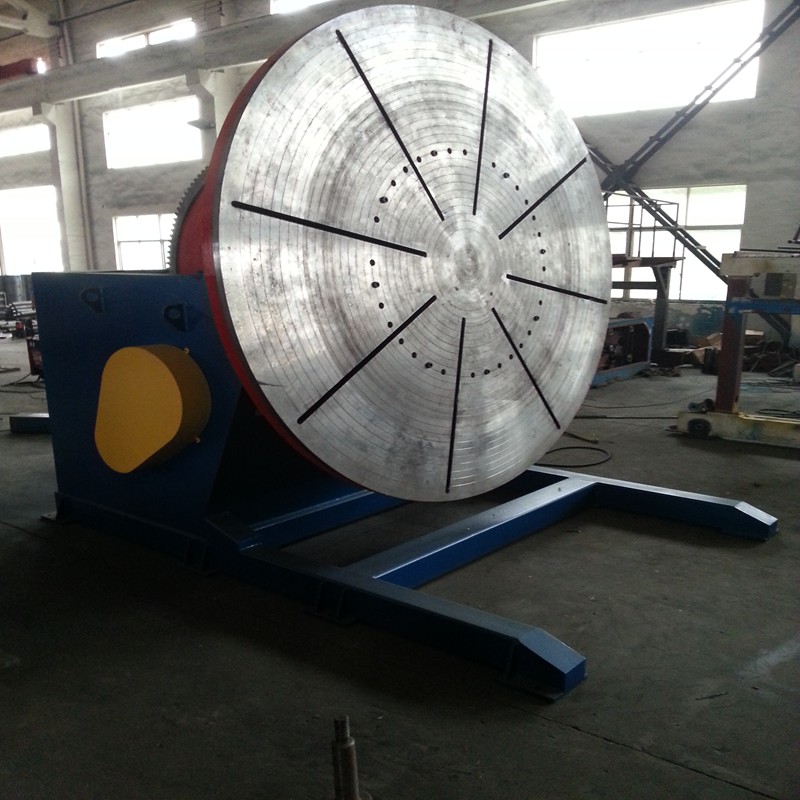

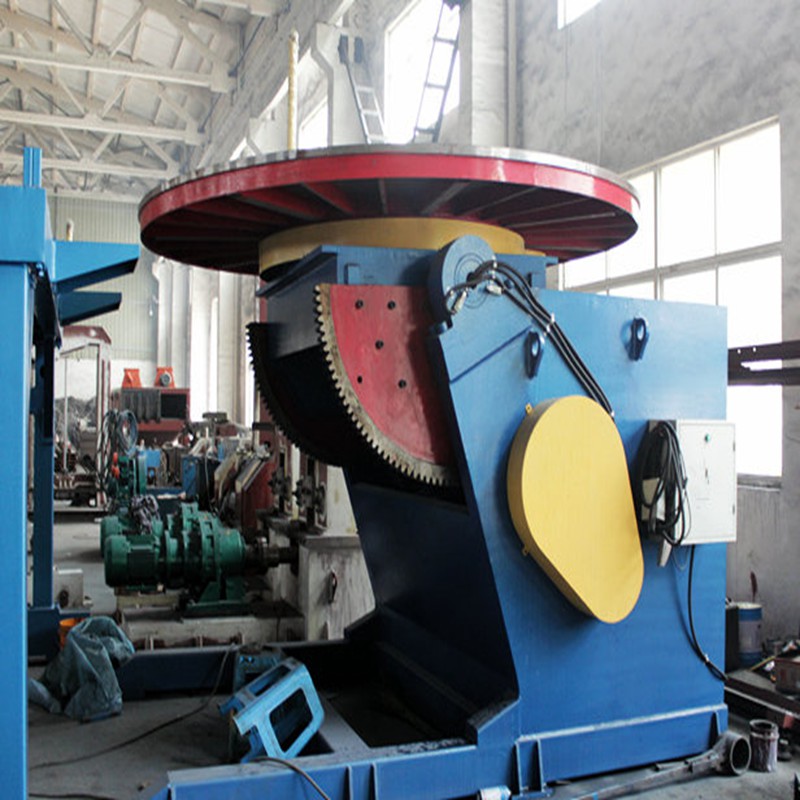

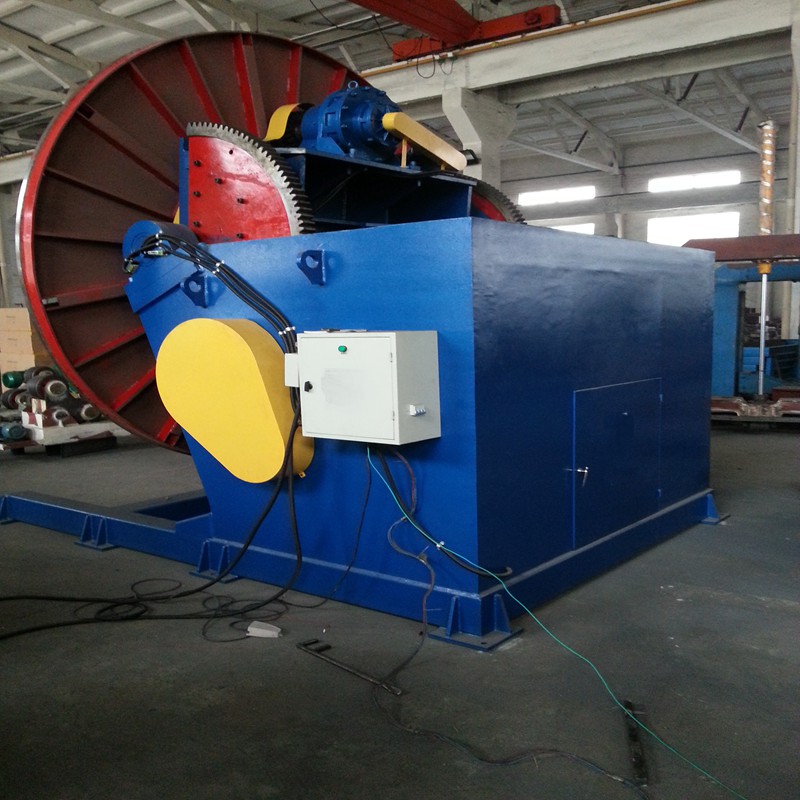

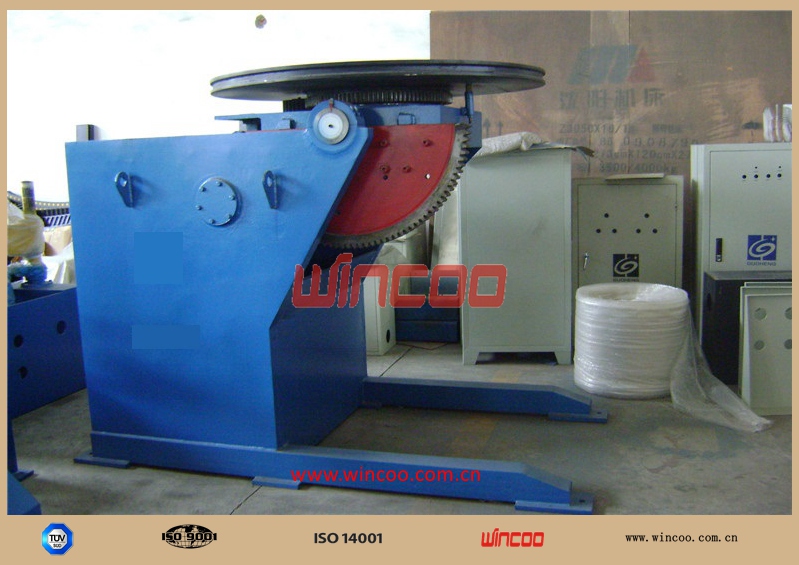

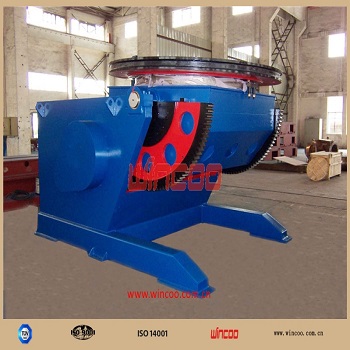

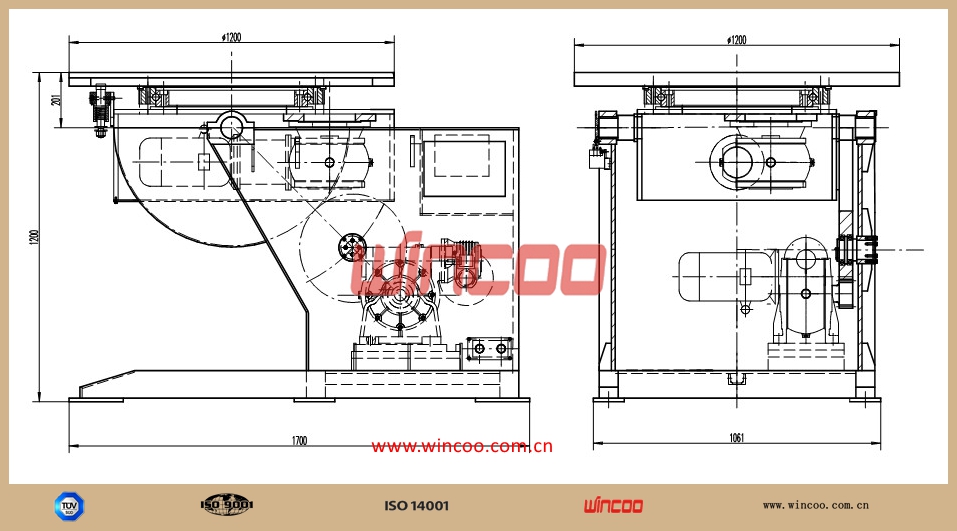

Welding positioners(turn table)are usually used for welding of shafts,plates and cylinders.There are T-slots for clamping and positioning of vessels.Welding table could do 360^ rotating movement and 120^ tilting movement.Pedestal of machine adapts airframe structure and its overall stability is good,no need to fix it on ground.Hand-control box is offered,being convenient.
Technical Parameters
Model |
Loading Capacity(kg) |
Rotary Speed (rpm) |
Tilting Speed (rpm) |
Tilting Angle(^) |
Worktable Dia.(mm) |
Rotation Power (KW) |
Tilting Power (kw) |
Speed adjust |
Max Eccentricity |
Max Gravity(mm) |
ZHB-01 | 100 | 0.4-4 | 2 | 0-90 | 400 | 0.18 | 0.18 |
AC Variable Frequency Drive(VFD) | 150 | 200 |
ZHB-03 | 300 | 0.1-1 | 1 | 0-90 | 600 | 0.37 | 0.37 | 150 | 200 | |
ZHB-06 | 600 | 0.09-0.9 | 0.42 | 0-90 | 1000 | 0.75 | 0.75 | 150 | 200 | |
ZHB-12 | 1200 | 0.05-0.5 | 0.4 | 0-120 | 1200 | 1.1 | 1.1 | 200 | 250 | |
ZHB-30 | 3000 | 0.05-0.5 | 0.23 | 0-120 | 1400 | 1.1 | 2.2 | 200 | 300 | |
ZHB-50 | 5000 | 0.05-0.5 | 0.2 | 0-120 | 1500 | 1.5 | 3 | 200 | 300 | |
ZHB-100 | 10000 | 0.05-0.5 | 0.2 | 0-120 | 2000 | 3 | 4 | 200 | 400 | |
ZHB-150 | 15000 | 0.04-0.4 | 0.15 | 0-120 | 2200 | 4 | 7.5 | 200 | 500 | |
ZHB-200 | 20000 | 0.04-0.4 | 0.15 | 0-90 | 2500 | 5.5 | 11 | 200 | 600 | |
ZHB-300 | 30000 | 0.03-0.3 | 0.15 | 0-90 | 3000 | 5.5 | 15 | 200 | 650 | |
ZHB-500 | 50000 | 0.02-0.2 | 0.06 | 0-90 | 4000 | 11 | 18.5 | 200 | 800 |
Note:1.Three jaw&four jaw chuck could be offered
2. Rotation speed control could adopt DC or servo control,the scope could be 100 times
3. ZHB-01&ZHB-03 could be manual tilting
