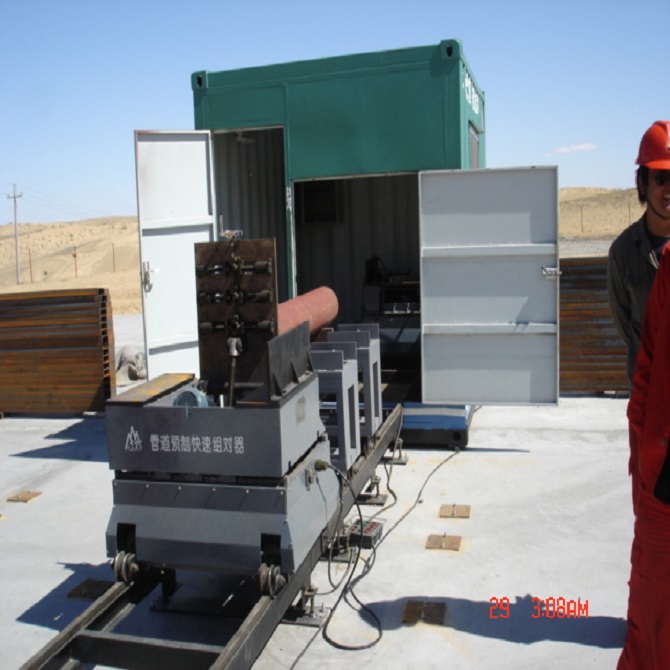

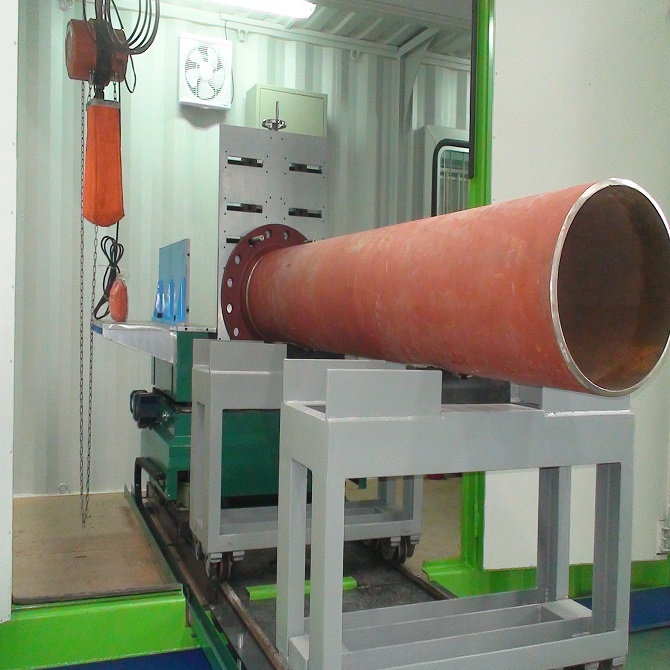

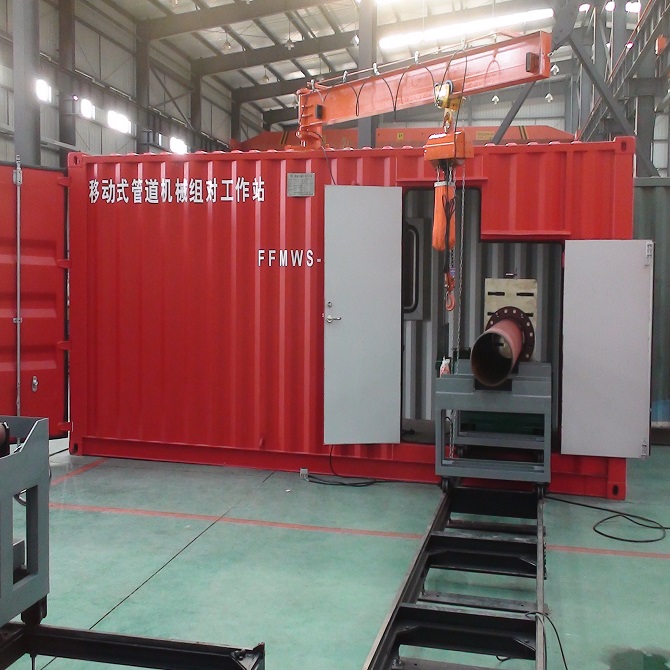

Pipeline mechanical fitting-up workstation

Pipeline mechanical fitting-up workstation are equipment that can be prefabricated outdoors.This not only saves manpower, but also saves transportation time.Meanwhile, the pipeline construction steps can be adjusted according to the site conditions to further save time and manpower.

Performance Features:
1. Basic Configurationa:

    Containerized Type Piping/ Pipe Spool Fabrication System

    Many Sets of Pipe Cutting & Beveling Machining Workstation.

    Many Sets of Mechanical Pipe Fitting Up Workstation

    Many sets of Piping Automatic Welding Workstation

    Many Set sof Logistics Transport System or Conveying Sstem.

    A Set of Steel Structure Pipe Racks.

2. Production Efficiency: Eextremely high ( Hoisting by overhead traveling crane, Beveling by

    High Speed Pipe Cutting and Beveling Machine and Welding by Automatic Welding Station)
3. Applicable Industries:OIL & GAS, OIL REFINERY FACILITIES, PETROCHEMICAL, ONSHORE & OFFSHORE,

  CHEMICAL ENGINEERING, NUCLEAR POWER PLANT, SHIPBUILDING, POWER PLANT, ENERGY, AEROSPACE.

    Especially suit for field pipe prefabrication.

4. Production Capacity: 20, 000~150, 000 DI/ month (or depend on filed size or machines config),

    reduce manpower input, improve automation level & efficiency, and save much more cost.
