Introduction:

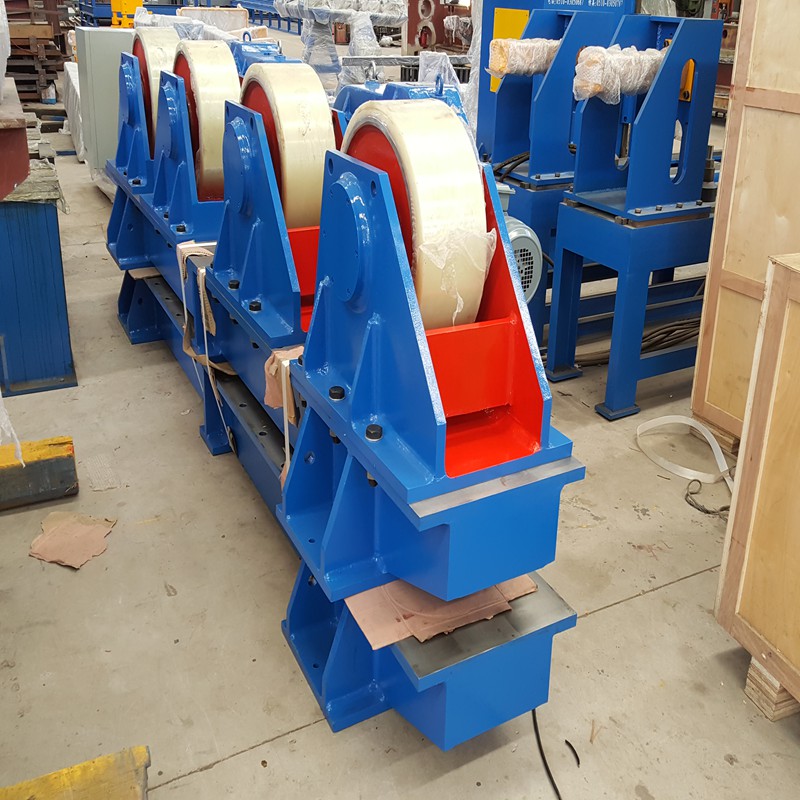

Welding rotator is mainly used to weld,burnish,assemble,assemble the cylinder-vessel,its series include self aligning rotator,conventional rotator,tilting rotators,and drift rotators,traverse type rotators,we can provide solutions to unique welding rotator according to the customer’s requirement.
Main technical parameters:
Model | Max load capacity(t) | Vessel diameter range(mm) | Diameter and width of roller(polyure thane)(mm) | Motor power(kw) | Roller speed(m/min) |
HGZ5 | 5 | 250-2300 | 250*100 | 0.75 | Variable Frequency drive |
HGZ10 | 10 | 320-2800 | 300&120 | 1.1 | |
HGZ20 | 20 | 500-3500 | 350*140 | 1.5 | |
HGZ40 | 40 | 600-4200 | 400*160 | 3 | |
HGZ60 | 60 | 750-4800 | 450*180 | 4 | |
HGZ80 | 80 | 850-5000 | 450*200 | 4 | |
HGZ100 | 100 | 1000-5500 | 450*240 | 5.5 | |
HGZ150 | 150 | 1000-6500 | 500*280 | 5.5 | |
HGZ200 | 200 | 1000-6500 | 250*220steel wheel | 2*5.5 | |
HGZ300 | 300 | 1000-7000 | 600*280steel wheel | 2*5.5 | |
HGZ500 | 500 | 1000-7000 | 750*300steel wheel | 2*7.5 |
