Steel structure production line

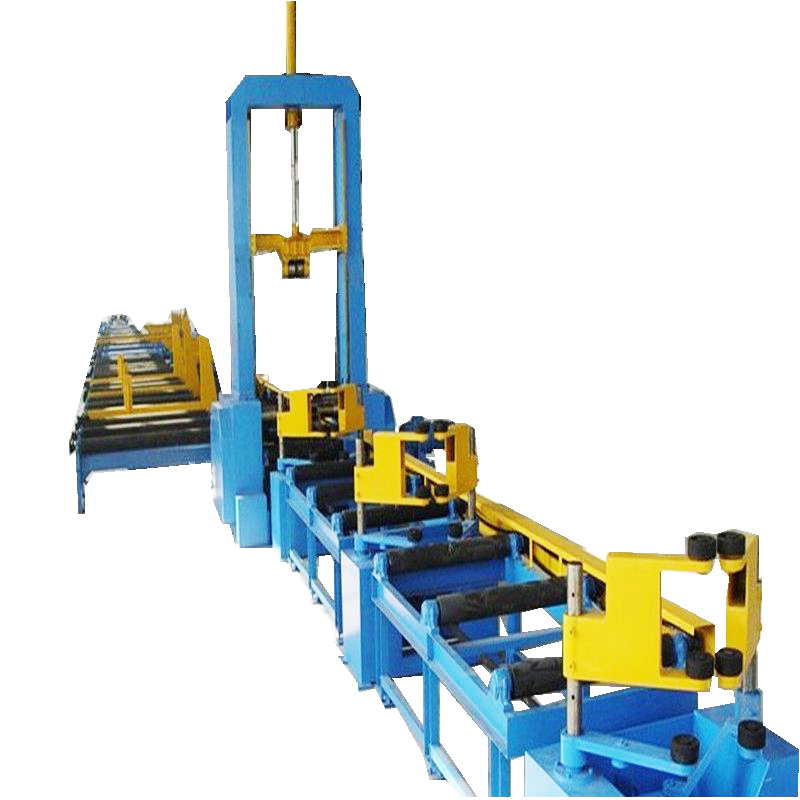

H-Beam Combination Workstation for Assembly, Welding and Straightening

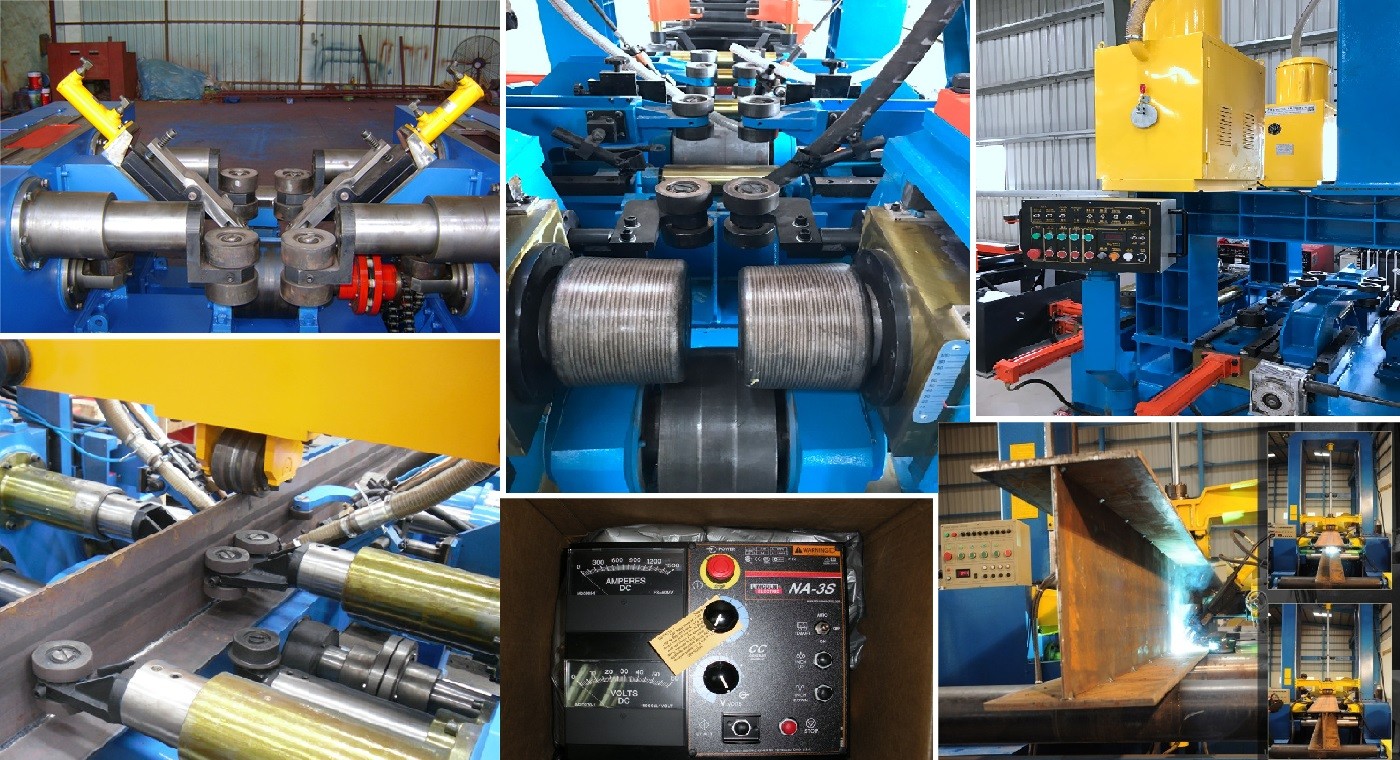

Main configurations

1.Heavy duty design, with  Four  guide rails on the gantry

2.with two sets of Chinese MZ1000 SAW welders and flux recycle unit

3.web and flange aligning and centering at the same time automatically

4.Automatic arc guide system

5.Hydraulic flange straightening

6.In put conveyor :2.6m conveyor*3sections (one of them is powered)

7.Output conveyor: 11.5m (including two elevation conveyors)

Technical parameters

H型钢组对 询盘所需参数.png

Parameters/Model

PHJ15

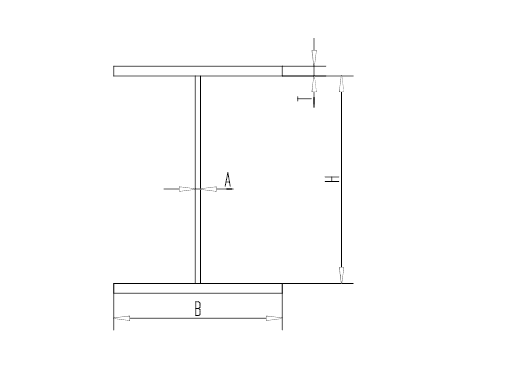

Web sizes

Height (mm) H

200-1500

Thickness (mm) A

6-30

Flange sizes

Width (mm) B

200-800

Thickness (mm) T

6-40

Straightening thickness (mm)

6-35

Work-piece length (mm)

4000-15000

Welding fillet height (mm)

4-8

Mainframe feeding speed (mm/min)

200-2000 (VFD)

Welding speed (mm/min)

200-1200 (VFD)

Machine power (kW)

18.1kW (besides SAW welder about 100KVA*2)

Input conveyor

2.6m conveyor*3sections (one of them is powered)

Output conveyor

11.5m (including two elevation conveyors)

Welding method

Flat fillet weld

Straightening method

Hydraulic type

Welding technology

Single arc twin/single wire SAW welding

Welding power

American Lincoln DC-1000, NA-3 or Chinese welder brand

Power supply

380V 50HZ 3P
