Specification:

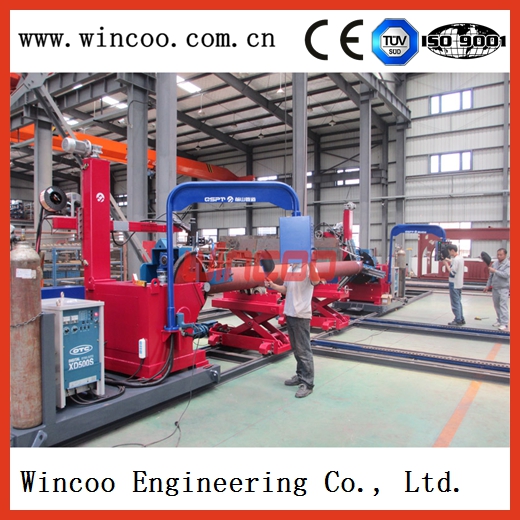

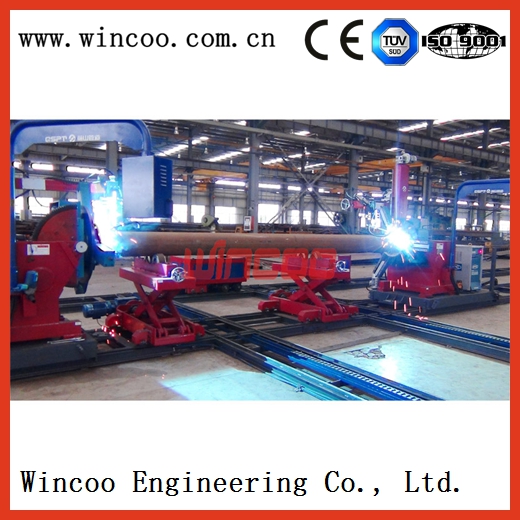

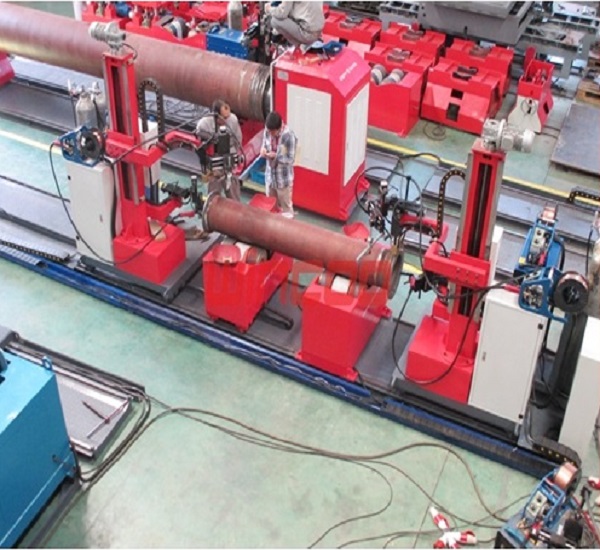

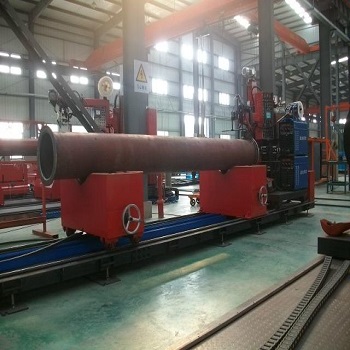

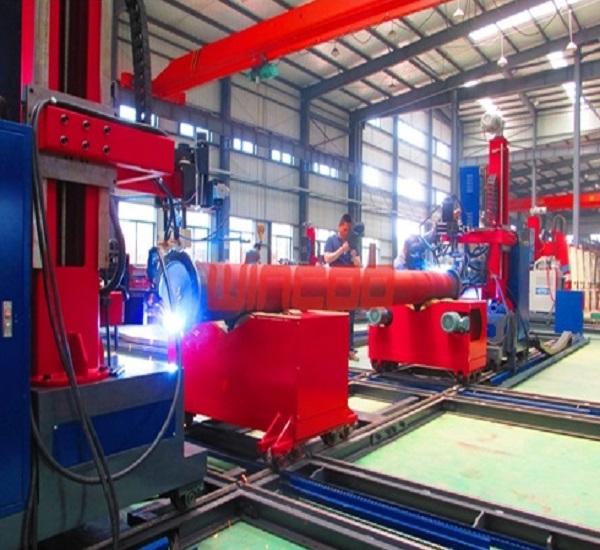

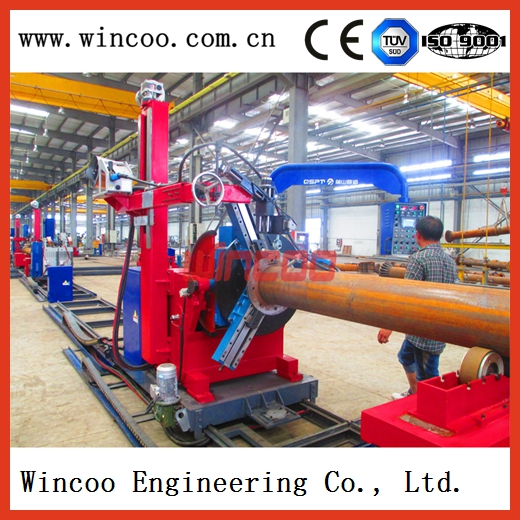

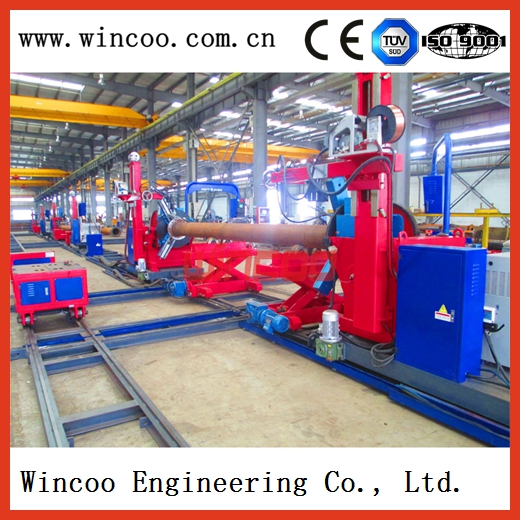

Slip-on Flange Automatic Welding Machine(2-16'')
It can weld pipe with slip-on flanges automatically for root pass, filling in and cap pass with FCAW welding procedure.
Suitable for industries of: OIL & GAS, Refinery facilities, Offshore & Shipbuilding, Power Plant, Metallurgy, ETC
Reference: CNPC, SINOPEC, KSS, CNECC, Keppel, L&T, SANY, CSIC, ROTARY, CSSC, ETC.
Input voltage | 380V50HZ | Tube diameter | DN100-600 |
Input capacity | 50kw | Suitable length | 300-1200mm |
Wall thickness | 6-50mm | Application materials | Carbon steel,stainless steel,alloy steel |
Artifacts requires | Can not influence the assembly qualified,welds form of corrosion,such as wrong side of nature and man for the defect.The error requirement:argon arc welding 1mm or less gas shielded welding 3mm or less | Welding process | Argon arc/gas backing. argon arc/gas/submerged arc welding filler welding covering |
Welding form | Multi-level,multi-channel welding | ||
Welding torch lifting | Motor,stepping motor driver | ||
Work piece rotation | Round up and down pressure,motor reducer drive,speed adjustable stepless | ||
Welding power source | With reference to the above equipment list the power configuration in the table | ||
Apply to weld | The tube-tube,the tube-pipe elbow,the tube-flange,the tube-tee joint,pipe size head | ||
Form a complete set of logistics | 1 set,2 sets of car+7.5m,walking can be in orbit manual,meet different length of the bearing. | Swing system | Argon arc:pendulum,gas shielded:line submerged arc:no swing swing:+/-25mmO(adjustable) the pendulum:20-60 times/min(adjustable)(not package about timing time) |
The base of mobile | Electric | ||
Welding qualified | Welding qualified rate of more than 98% | ||
Welding efficiency | 250-350-inch diameter/10hours |
