1. Introduction

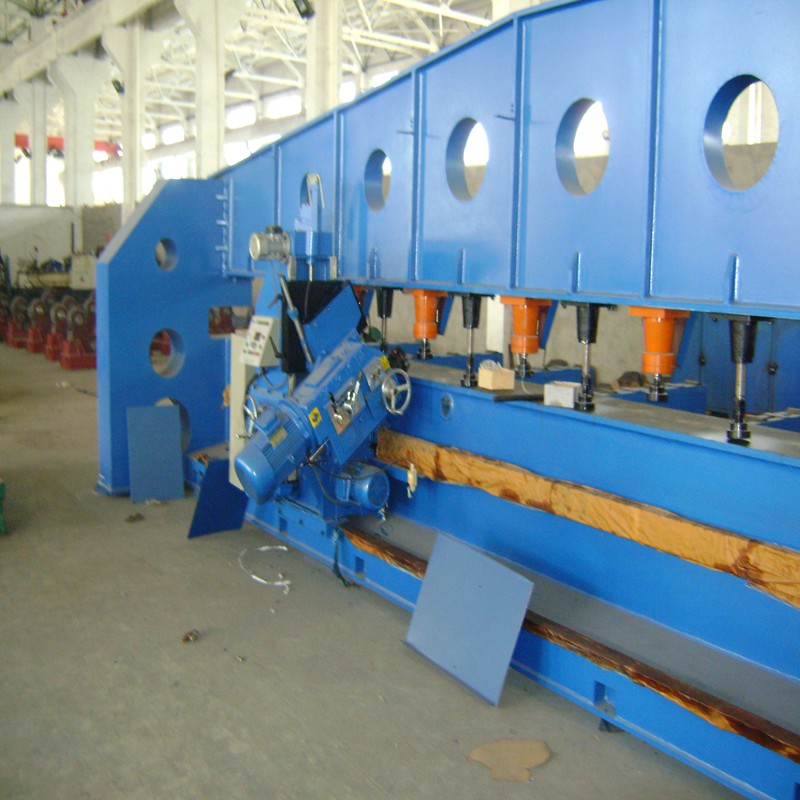

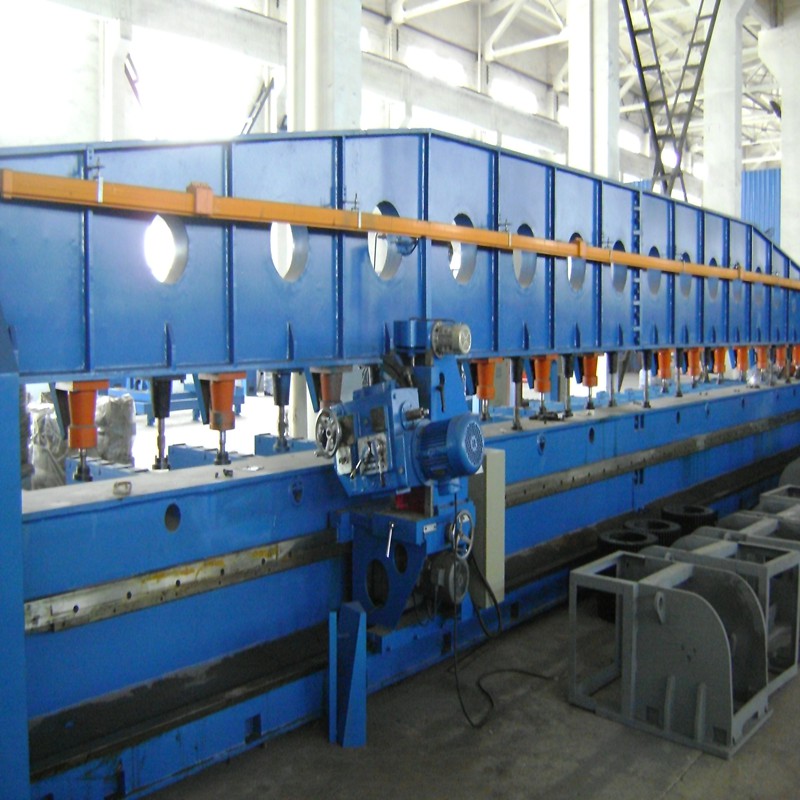

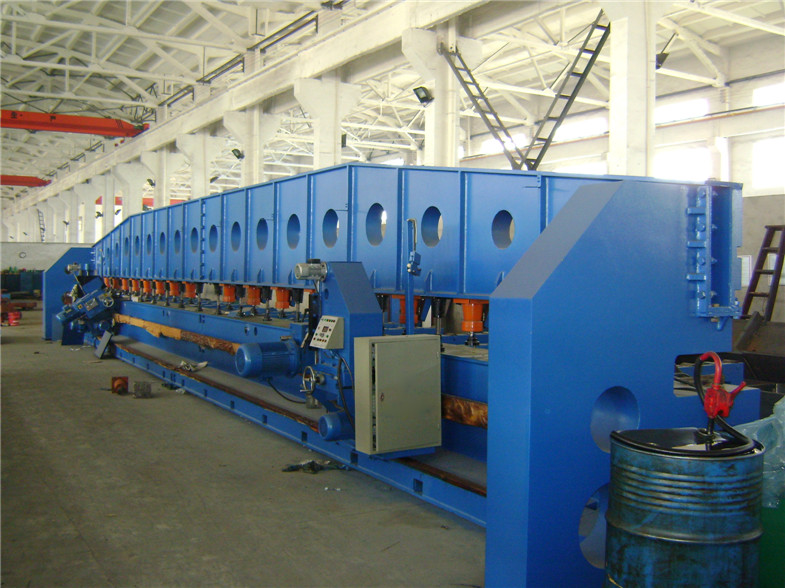

This series machine is a kind of advanced and high efficient milling equipment to prepare the groove of plate before welding instead of planing. Compared with planer, it has the advantages of saving power, low investment and high accuracy of surface finish. It is widely used in the industries as pressure vessel, boiler, ship-building, power plant, petrochemical and machinery, etc.

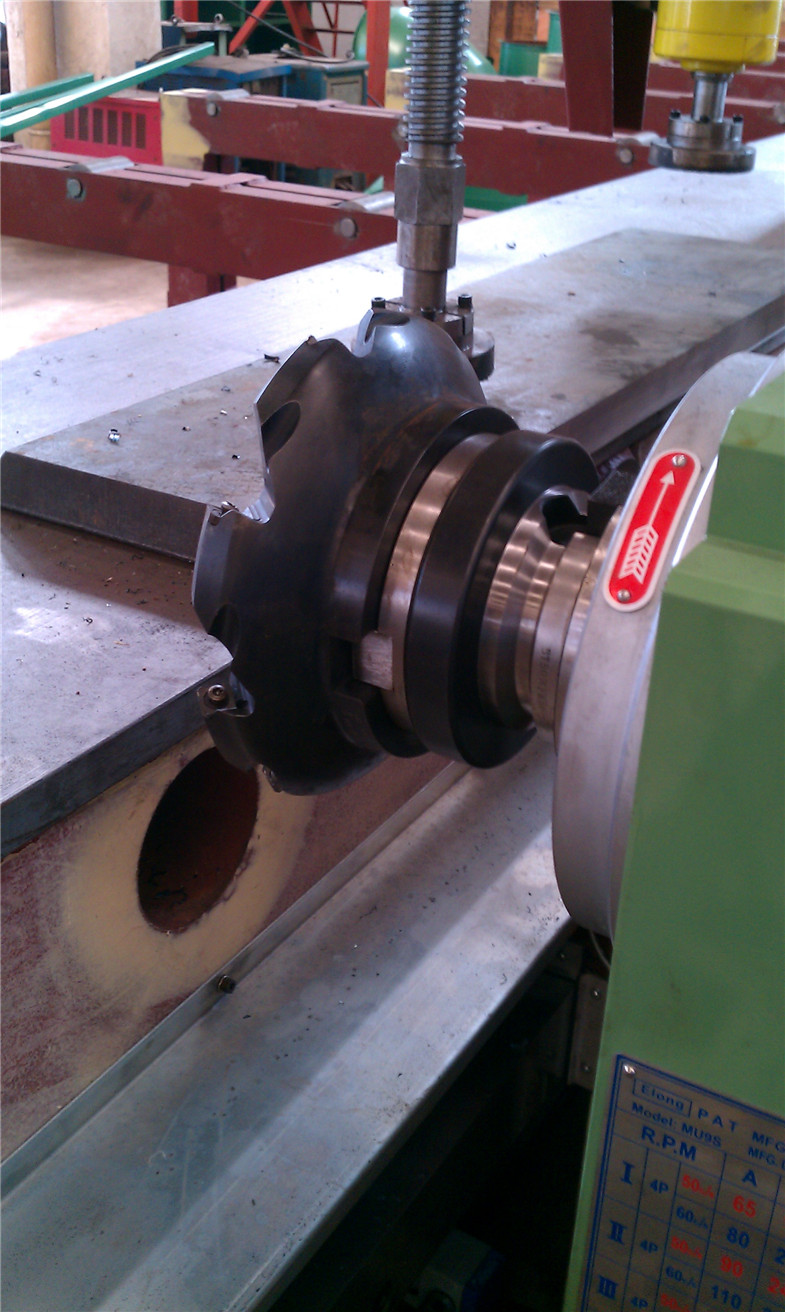

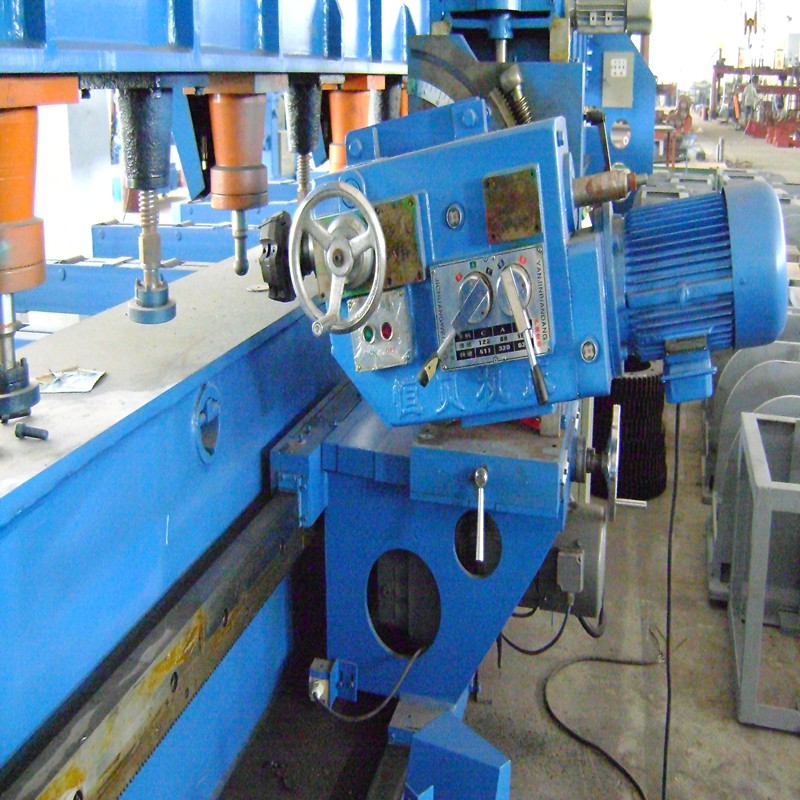

There are single milling head and double milling head; and the milling head can be standard facer or molding facer for your options.
2. Main Parameters
Model | XBJ6 | XBJ9 | XBJ12 | XBJ15 | XBJ18 |
Suitable plate length (m) | 6 | 9 | 12 | 15 | 18 |
Distance between hold-down and bed (mm) | 80 | ||||
Plate thickness (mm) | 6-50 | ||||
Milling angle(°) | 0°-45° (can be altered) | ||||
Milling head model | TX32A or TX40A | ||||
Power and revolution of milling head | 5.5kW, 1440rpm or 7.5kW, 1440rpm | ||||
Spindle revolution | 125-630 | ||||
Milling speed (m/min) | 0.13-1 | ||||
Fast forward and return speed (m/min) | 3.5 | ||||
Hydraulic pressure (Mpa) | <=3.5 | ||||
Power supply | AC380V, 50HZ, 3P or tailor made | ||||
Above are our standard models and parameters, and it can be designed and manufactured on request. |
*We reserve the right to alter specifications without prior notice.
